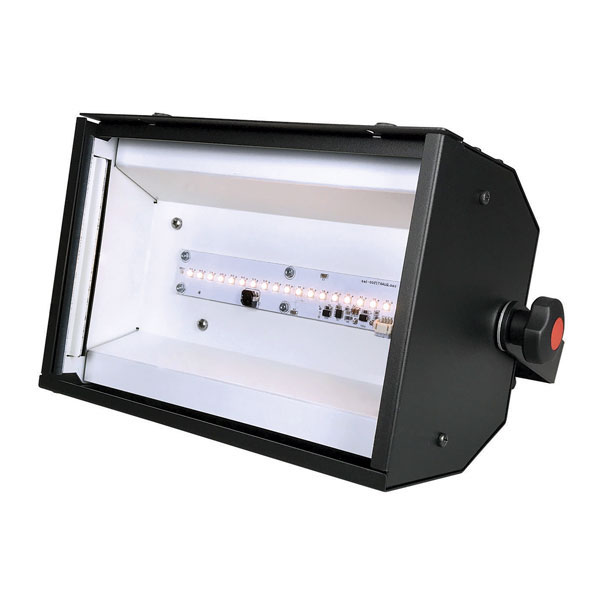

THEATRE 1000C PLUS M (it.186210)
Compact LED diffuser with Hi-Power strip LEDs that reproduce Halogen linear lamp.
Documents
Compact LED diffuser with Hi-Power strip LEDs that reproduce Halogen linear lamp.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 5750K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 19 LEDS 5750K |
| Lumen max source (lm) | 10000 |
| Optics | |
|---|---|
| Lenses | 110° no lens |
| Control | |
|---|---|
| Control type | DMX - RDM |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 80 |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional) |
| IP protection rating | 20 |
| Sizes l x p x h (mm) | 285 x 225 x 175 |
| Weight (Kgs) | 3 |
| Product Category | Wall Washer |
| Others | |
|---|---|
| TH F-FILTER 65 (art.900412) | No, Yes |
| TH T-FILTER 17 (art.900416) | No, Yes |
| TH-BD (art.900115) | No, Yes |
| MARINE GRADE (art.900546) | No, Yes |
