THEATRE 500 PLUG-IN M (it.186000)

THEATRE 500 PLUG-IN M (it.186000)

https://www.studiodue.com/web/image/product.template/239/image_1920?unique=dc41b77

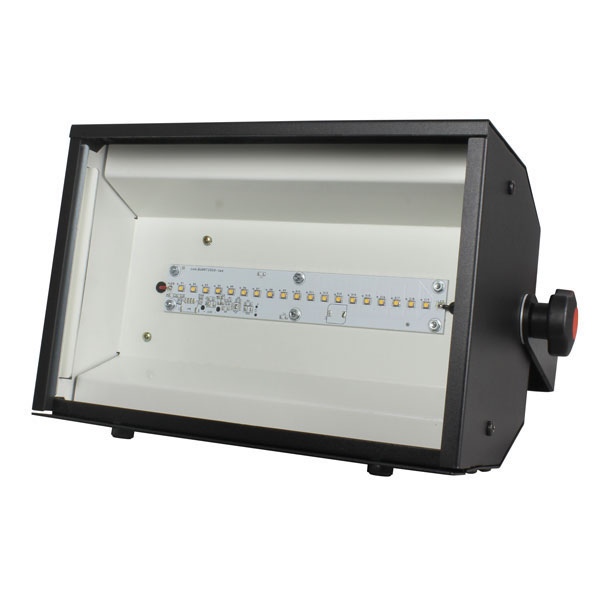

Compact LED diffuser with Hi-Power strip LEDs that reproduce Halogen linear lamp.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • TH F-FILTER 65 (art.900412)
  • TH T-FILTER 17 (art.900416)
  • TH-BD (art.900115)
  • MARINE GRADE (art.900546)

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6000K, GREEN, BLUE, AMBER
Number of LEDs 19 LEDS 2700K 90CRI
Lumen max source (lm) 6000
Lenses 110° no lens
Control type Plug-in
Functions N/A
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 68
Mounting systems Surface, Truss (optional)
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
IP protection rating 20
Sizes l x p x h (mm) 285 x 225 x 175
Weight (Kgs) 3
Marine Grade treatment None
Product Category Wall Washer
TH F-FILTER 65 (art.900412) No, Yes
TH T-FILTER 17 (art.900416) No, Yes
TH-BD (art.900115) No, Yes
MARINE GRADE (art.900546) No, Yes
Contact Us


Compact LED diffuser with Hi-Power strip LEDs that reproduce Halogen linear lamp.
