THEATRE 500 PLUG-IN M (it.186000)

THEATRE 500 PLUG-IN M (it.186000)

https://www.studiodue.com/web/image/product.template/239/image_1920?unique=dc41b77

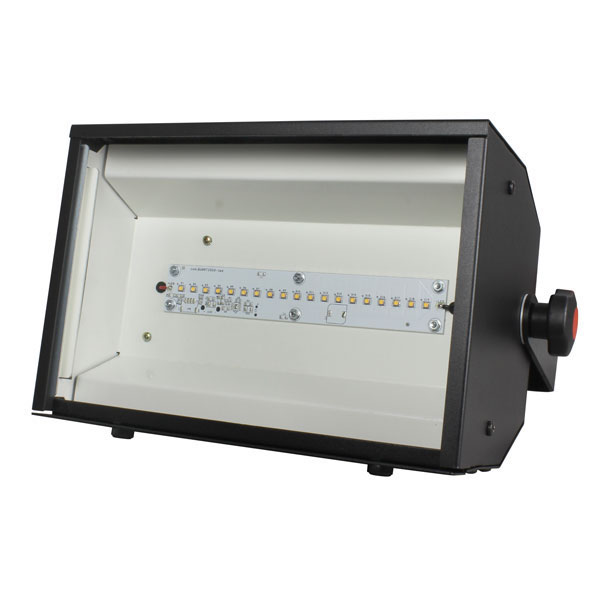

Compact LED diffuser with Hi-Power strip LEDs that reproduce Halogen linear lamp.

Not Available For Sale

  • LED type
  • Lumen max source (lm)
  • Number of LEDs
  • Lenses
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • Sizes l x p x h (mm)
  • Mounting systems
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing
  • TH F-FILTER 65 (art.900412)
  • TH T-FILTER 17 (art.900416)
  • TH-BD (art.900115)
  • MARINE GRADE (art.900546)

This combination does not exist.

Contact Us


Compact LED diffuser with Hi-Power strip LEDs that reproduce Halogen linear lamp.

Specifications

Lighting source
LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6000K, GREEN, BLUE, AMBER
Lumen max source (lm) 6000
Number of LEDs 19 LEDS 2700K 90CRI
Optics
Lenses 110° no lens
Control
Control type Plug-in
Functions and Setup
Functions N/A
Power supply
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 68
Physical
Mounting systems Surface, Truss (optional)
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
IP protection rating 20
Sizes l x p x h (mm) 285 x 225 x 175
Marine Grade treatment None
Weight (Kgs) 3
Product Category Wall Washer
Others
TH F-FILTER 65 (art.900412) No, Yes
TH T-FILTER 17 (art.900416) No, Yes
TH-BD (art.900115) No, Yes
MARINE GRADE (art.900546) No, Yes
