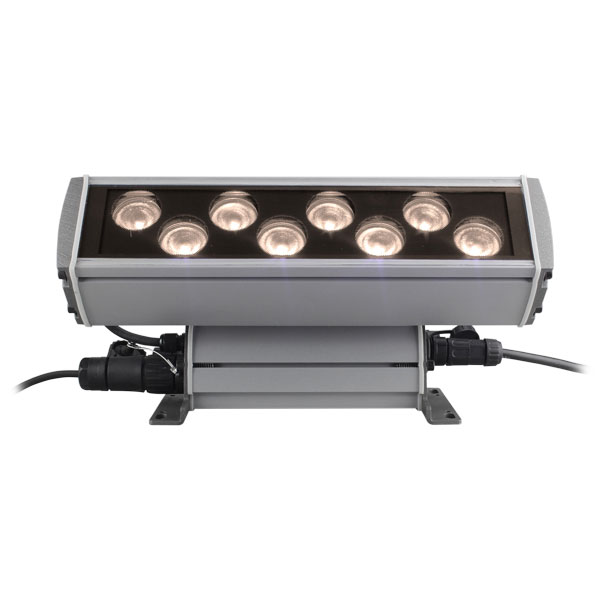

ARCHI 40 WB (it. 170230)
Compact LED floodlight White Balance projector. 8 Cool White LEDs + 8 Warm White LEDs. White Balance version. IP 67 protection rating. RDM-DRS.
Documents
Compact LED floodlight White Balance projector. 8 Cool White LEDs + 8 Warm White LEDs. White Balance version. IP 67 protection rating. RDM-DRS.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | CW+WW (5W) |
| Number of LEDs | 8 White (2700K) + 8 White (6500K) |
| Lumen max source (lm) | 3500 |
| Optics | |
|---|---|
| Lenses | 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS, Wireless DMX receiver |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 35 |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1 |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 325 x 140 x 153 |
| Weight (Kgs) | 2,6 |
| Product Category | Spot |
