ARCHI 40 WB (it. 170230)

ARCHI 40 WB (it. 170230)

https://www.studiodue.com/web/image/product.template/1275/image_1920?unique=5a91a4b

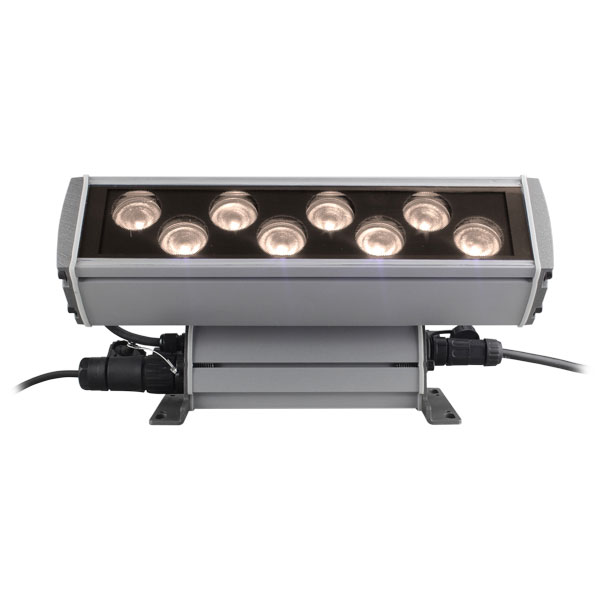

Compact LED floodlight White Balance projector. 8 Cool White LEDs + 8 Warm White LEDs. White Balance version. IP 67 protection rating. RDM-DRS.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type CW+WW (5W)
Number of LEDs 8 White (2700K) + 8 White (6500K)
Lumen max source (lm) 3500
Lenses 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions RDM/DRS, Wireless DMX receiver
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 35
Mounting systems Surface, Truss (optional)
Colour finishing Grey RAL 9006 (standard) 1, Black RAL 9005 (optional) 1, White RAL 9010 (optional) 1
Marine Grade treatment None, Yes
IP protection rating 67
Sizes l x p x h (mm) 325 x 140 x 153
Weight (Kgs) 2,6
Product Category Spot
Contact Us


Compact LED floodlight White Balance projector. 8 Cool White LEDs + 8 Warm White LEDs. White Balance version. IP 67 protection rating. RDM-DRS.
