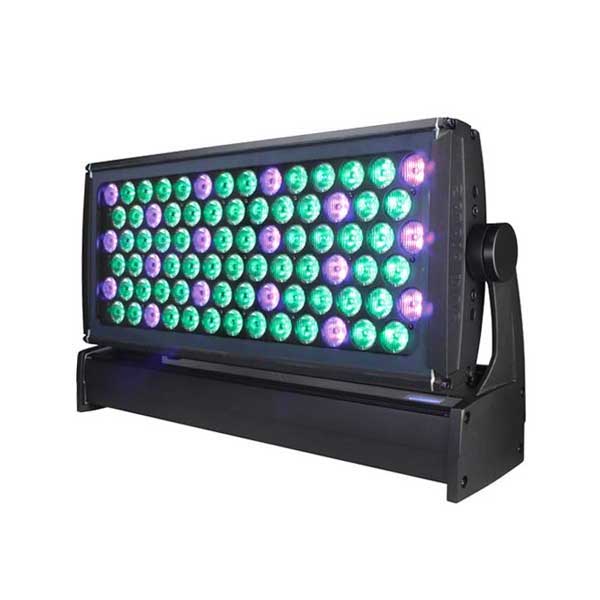

T-COLOR 6C RGBWA+UV (it.160710)
Hi Power long distance LED lighting (6 colors) colorchanger. 63 powerful RGBW full color LEDs + 18 Pc Amber LEDs + 18 UV LEDs. IP 67 protection rating. Optional IP 64.
Documents
Hi Power long distance LED lighting (6 colors) colorchanger. 63 powerful RGBW full color LEDs + 18 Pc Amber LEDs + 18 UV LEDs. IP 67 protection rating. Optional IP 64.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBWA+UV |
| Lumen max source (lm) | 40000 |
| Red lumen (lm) | 7450 |
| LED expected lifetime (hrs) | 50000 |
| Green lumen (lm) | 14500 |
| Number of LEDs | 99 |
| Blu lumen (lm) | 2100 |
| White lumen (lm) | 13900 |
| Amber lumen (lm) | 5000 |
| mW UV | 18000 |
| Optics | |
|---|---|
| Lenses | 8°, 10°x50°, 15°, 15°x30° standard, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: PowerCon IP65 connector (male-female), DMX signal: XLR5pin IP65 connector (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| Setup | RDM/DRS + touch control panel |
| DMX channels | 12ch (mode1) - 12ch (mode2) - 7ch - 6ch |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 550 |
| Current | 2,5A@230VAC |
| Power Factor | PF>0,95@230VAC |
| Inrush current | 80A@230V |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional) |
| IP protection rating | 67 |
| Sizes l x p x h (mm) | 656 x 159 x 365 |
| Weight (Kgs) | 15,9 |
| Product Category | Wall Washer |
| Others | |
|---|---|
| 563LED-FROST (art.900411) | No, Yes |
| HD-TC6 (art.900504) | No, Yes |
| 563-BD (art.900104) | No, Yes |
| 563-AG (art.900004) | No, Yes |
| CP-TC6 (art.900505) | No, Yes |
| CLAMP/C (art.900516) | No, Yes |
| FFB (art.900517) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
