Product Description

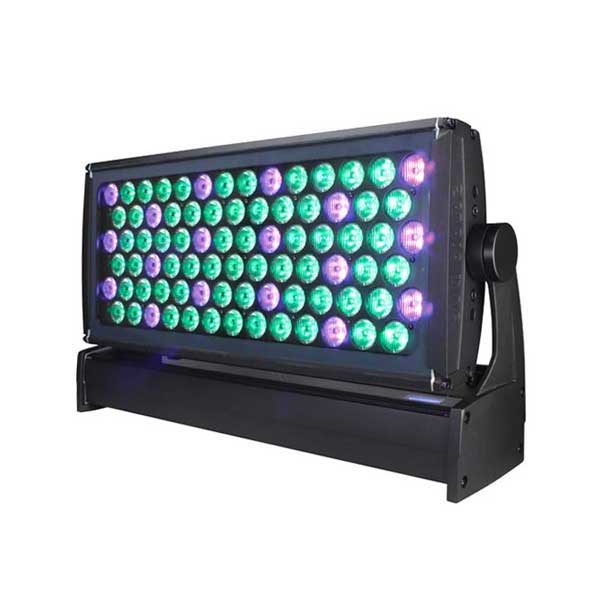

Hi Power long distance LED lighting (6 colors) colorchanger. 63 powerful RGBW full color LEDs + 18 Pc Amber LEDs + 18 UV LEDs. IP 67 protection rating. Optional IP 64.

Downloads

UM_T-Color_6Crgbwauv_art-1607.pdf

ART.160710 - TURBO COLOR 6C RGBWA + UV.zip
Technical specification
Icon attribute
Icon attribute
Icon attribute
LED type
RGBWA+UV
Number of LEDs
99
LED expected lifetime (hrs)
50000
Lumen MAX
35850
Red lumen (lm)
7450
Green lumen (lm)
14500
Blu lumen (lm)
2100
White lumen (lm)
13900
Amber lumen (lm)
5000
mW UV
18000
Lenses
15°
15°x30° standard
25°
40°
60°
Filters (optional)
Diffuser filter on request: indicate a required value (X° - Y°)
Connectors and cables
Main Power: PowerCon IP65 connector (male-female)
DMX signal: XLR5pin IP65 connector (male-female)
Control type
Protocol USITT DMX512 - RDM
Protocol USITT DMX512 - RDM + Wireless (on request)
Functions
LED display with flip function
Dedicated DMX channel for white balance from 2000K to 10000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
Setup
RDM/DRS + touch control panel
DMX channels
12ch (mode1) - 12ch (mode2) - 7ch - 6ch
Input range
100 - 240 VAC; 47/63 Hz
Power (W)
550
Current
2,5A@230VAC
Power Factor
PF>0,95@230VAC
Inrush current
80A@230V
Mounting systems
Surface
Truss (optional)
Colour finishing
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
Marine Grade treatment
None
Yes
IP protection rating
67
Sizes l x p x h (mm)
656 x 159 x 365
Weight (Kgs)
15,9
Accessories - Flight case
None
Yes
Accessories - Anti glare
None
Yes
Accessories - Barn door
None
Yes
