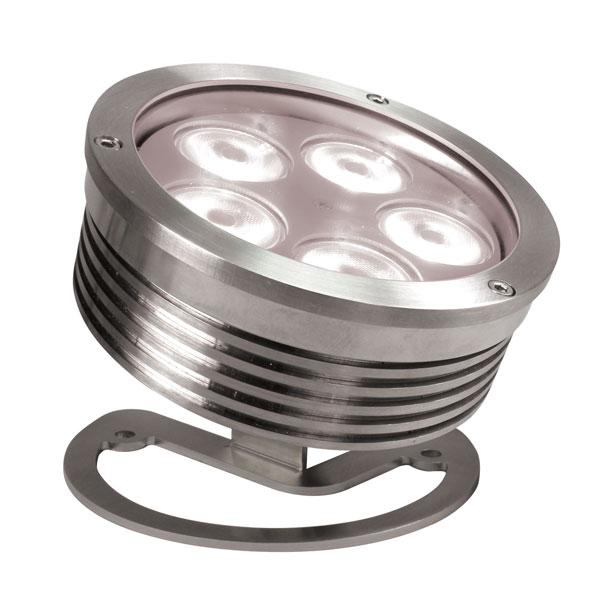

ARIA-WL5 (it.143210)
Ip 67 protection rating, it includes n. 5 x 10W monochromatic LEDs. External Power Supply. Stainless steel AISI 304 spot light with bracket suitable for outdoor installations.
Ip 67 protection rating, it includes n. 5 x 10W monochromatic LEDs. External Power Supply. Stainless steel AISI 304 spot light with bracket suitable for outdoor installations.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Lumen max source (lm) | 2500 |
| Number of LEDs | 5 White (5W) |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Filter f17° tilt, Filter f34° tilt, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Control | |
|---|---|
| Control type | DMX - RDM |
| Functions and Setup | |
|---|---|
| Functions | Control Driver esterno |
| Power supply | |
|---|---|
| Input range | 17 VDC |
| Physical | |
|---|---|
| IP protection rating | 67, 68 optional |
| Mounting systems | Surface, Truss (optional) |
| IK grade protection | 08 |
| Weight (Kgs) | 2,5 |
| Dimensions d x h (mm) | 134 x 108,5 |
| Product Category | Spot |
| Materials | Ultra clear 10mm tempered glass |
| Finishings | |
|---|---|
| Case | AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional) |
| Others | |
|---|---|
| FILTER-SING 105-W (art.900419) | No, Yes |
| FILTER-SING 105 (art.900420) | No, Yes |
| FILTER-DOUB 105 (art.900421) | No, Yes |
| CD 1 TER RGBW-M (art.537170) | No, Yes |
| CD 10 TER RGBW-M (art.531170) | No, Yes |
| CD 4 TER RGBW-M (art.553170) | No, Yes |
| CONTROL BOX IC5 17V (art.510170) | No, Yes |
| MD BOX 17V (art. 500170) | No, Yes |
