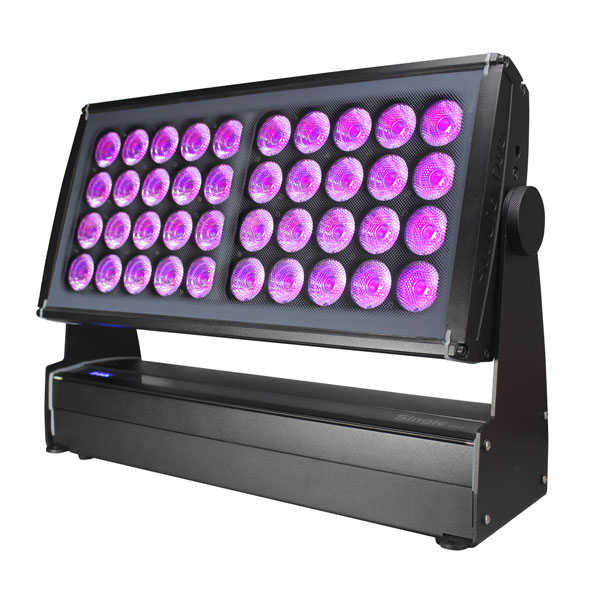

SINGLE 40HP RGBW (it.140310)

SINGLE 40HP RGBW (it.140310)

https://www.studiodue.com/web/image/product.template/234/image_1920?unique=a3098f7

Hi Power wash LED colorchanger with high brightness RGBW LEDs even more powerful. Lighting fixtures with a large and uniform light output. IP67 protection rating.







Specifications

Lighting source
LED type RGBW5050MULTICHIP
Red lumen (lm) 6720
Green lumen (lm) 9400
Blu lumen (lm) 2000
White lumen (lm) 12400
Number of LEDs 40
Lumen source (lm) 28000
LED expected lifetime (hrs) 50000
Colour temperature range (K) 2000 - 10000
Optics
Lenses 6°, 10°, 15°, 25°, 40°, 60°
Filters (optional) No filter, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables Main Power: 3x1mm cable H05 1,5mt, DMX signal: 4pin IP67 connector (male-female)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, CYM simulation, Flicker-free function
DMX channels 10ch - 9ch - 4ch
Setup RDM/DRS + touch control panel
Power supply
Power max (W) 320
Input range 100 - 240 VAC; 47/63 Hz
Inrush current 60A@230V
Current 1,4A@230VAC
Physical
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional), Any RAL (optional)
Mounting systems Surface, Truss (optional)
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Sizes l x p x h (mm) 613 x 184 x 415 mm
Weight (Kgs) 19
IP protection rating 67
Product Category Wall Washer
IK grade protection 07
Optional/Accessories
_MARINE GRADE TREATMENT (art.900546) -, Marine grade treatment
_540-BD (art.900107) -, Barn door
_540-AG (art.900007) -, Anti glare
_540-SN (art.900212) -, Snoot
_540-CL (art.900316) -, Cowl
_540-HC (art.900702) -, Honeycomb
_540LED-FROST (art.900409) -, Frost
_FFB (art.900517) -, FFB Omega
_CLAMP/C (art.900516) -, Clamp/c
_SAFETY WIRE/C (art.900523) -, Safety wire
Others
SINGLE CASEx2 (art. a richiesta) Flight Case No, Yes
