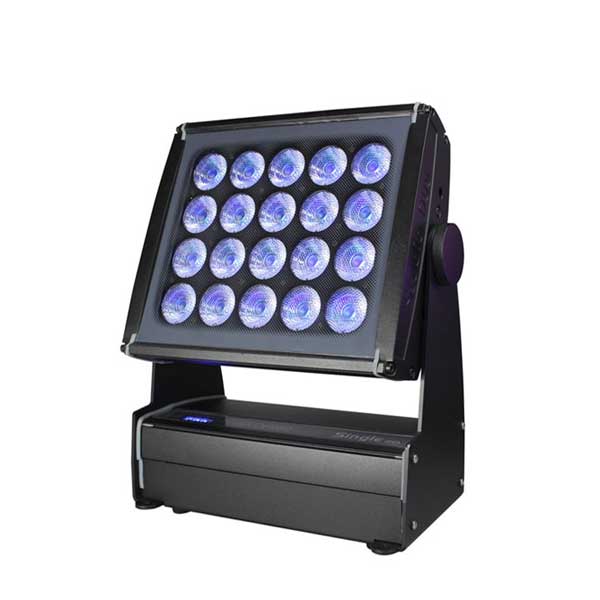

SINGLE 20HP RGBW (it.140210)

SINGLE 20HP RGBW (it.140210)

https://www.studiodue.com/web/image/product.template/245/image_1920?unique=34f9791

Hi Power wash LED colorchanger with high brightness RGBW LEDs even more powerful. Lighting fixtures with a large and uniform light output. IP 67 protection rating.







Specifications

Lighting source
LED type RGBW5050MULTICHIP
Red lumen (lm) 3360
Green lumen (lm) 4700
Blu lumen (lm) 1000
White lumen (lm) 6200
Number of LEDs 20
LED expected lifetime (hrs) 50000
Lumen source (lm) 14000
Colour temperature range (K) 2000 - 10000
Optics
Lenses 6°, 10°, 15°, 25°, 40°, 60°
Filters (optional) No filter, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connections
Connectors and cables Main Power: 3x1mm cable H05 1,5mt, DMX signal: 4pin IP67 connector (male-female)
Control
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, CYM simulation, Flicker-free function
DMX channels 10ch - 9ch - 4ch
Setup RDM/DRS + touch control panel
Power supply
Power max (W) 160
Input range 100 - 240 VAC; 47/63 Hz
Inrush current 80A@230V
Current 0,7A@230VAC
Physical
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional), Any RAL (optional)
Mounting systems Surface, Truss (optional)
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Sizes l x p x h (mm) 355 x 184 x 415 mm
Weight (Kgs) 12
Product Category Wall Washer
IK grade protection 07
IP protection rating 67
Optional/Accessories
_MARINE GRADE TREATMENT (art.900546) -, Marine grade treatment
_280-BD (art.900108) -, Barn door
_280-AG (art.900008) -, Anti glare
_280-SN (art.900205) -, Snoot
_280-CL (art.900303) -, Cowl
_280-HC (art.900703) -, Honeycomb
_280LED-FROST (art.900410) -, Frost
_SAFETY WIRE/C (art.900523) -, Safety wire
_FFB (art.900517) -, FFB Omega
_CLAMP/C (art.900516) -, Clamp/c
