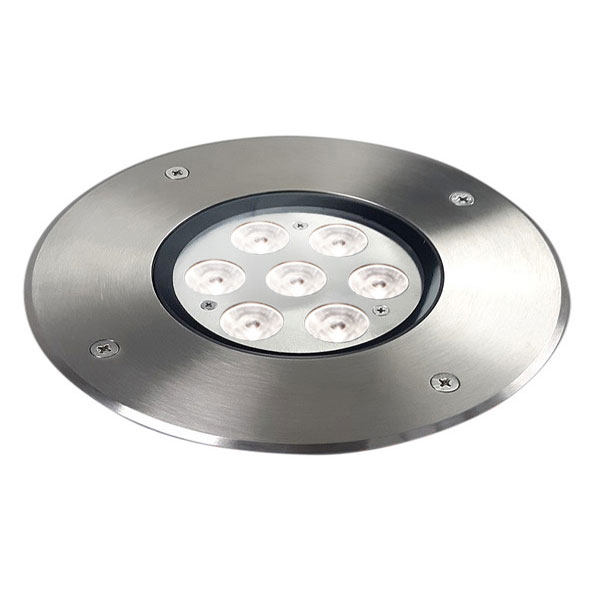

TERRA WTL7/316SS POB (it. 233010)

TERRA WTL7/316SS POB (it. 233010)

https://www.studiodue.com/web/image/product.template/3019/image_1920?unique=5a91a4b

Inground LED fixture (100-305VAC) with 7 monochromatic LEDs suitable for outdoor installation. On board power supply and DMX (POB). IP 68 not for immersion degree of protection. AISI 316 body and flange.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • CRI
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Inrush current
  • IP protection rating
  • IK grade protection
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • Plastic Case TER (art.900537)

This combination does not exist.

LED type WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6000K
Number of LEDs 7
LED expected lifetime (hrs) 50000
Lumen max source (lm) 1800
CRI >70 (on request >80, >90)
Lenses 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables 1.5mt 3x0.75mm power cable, 1.5mt 2x0.35mm+shield DMX signal cable
Control type DMX - RDM
Functions Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function
Setup RDM/DRS
DMX channels 3ch - 1ch
Input range 100 - 277 VAC; 47/63 Hz
Power max (W) 13
Current 60mA@230VAC
Inrush current 40A@230V
Materials Ultra clear 10mm tempered glass, PMMA lenses, All in stainless steel AISI316
IP protection rating 68 (not for immersion)
IK grade protection 09
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 190x80
Weight (Kgs) 2
Mounting systems Inground
Colour finishing AISI 316 brushed
Marine Grade treatment Yes
Product Category Inground
Plastic Case TER (art.900537) No, Yes
Contact Us


Inground LED fixture (100-305VAC) with 7 monochromatic LEDs suitable for outdoor installation. On board power supply and DMX (POB). IP 68 not for immersion degree of protection. AISI 316 body and flange.
