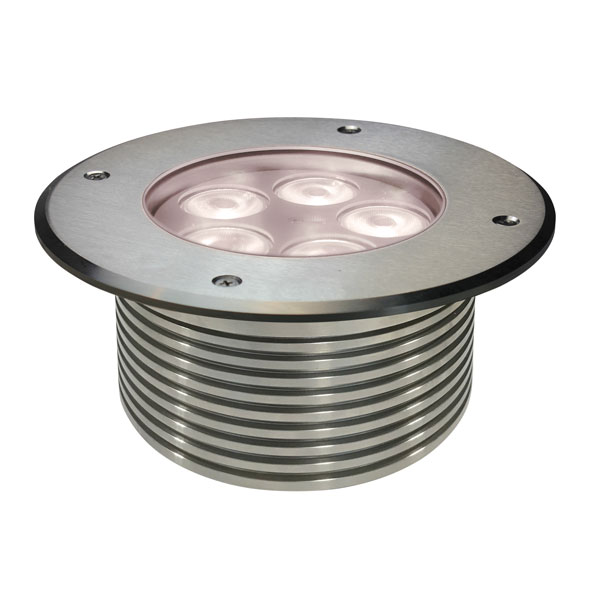

TERRA WL5 POB WB (it. 210430)

• LED type
  • CW+WW (5W)
• Number of LEDs
  • 5 (2700K) + 5 (6500K)
• LED expected lifetime (hrs)
  • 50000
• Lumen max source (lm)
  • 2200
• Lenses
  • 8°
  • 15°
  • 15°x30°
  • 25°
  • 40°
  • 60°
• Filters (optional)
  • None
  • Filter f17° tilt
  • Filter f34° tilt
  • Elliptical projection filter 60° x n° (n° = native lens) horizontal
  • Elliptical projection filter n° x 60° (n° = native lens) vertical
  • Filter f65° frost
• Connectors and cables
  • Main Power: 3x1mm cable H05 1,5mt
  • DMX signal: shielded cable 3x0,25 1,5mt bare ends
• Connettori e cavi (optional) Cable: type and length (optional)
• Control type
  • DMX - RDM
  • DMX - RDM + DALI
• Functions
  • Dedicated DMX channel for white balance from 2700K to 6500K
  • DMX or Auto Mode with Master-Slave function
  • Intelligent temperature control
  • Continuous dimming 0-100%
  • Smooth dimming function
  • Ultrafast strobe effect
  • Halogen simulation
  • Flicker-free function
• Setup
  • RDM/DRS
• DMX channels
  • 4ch - 2ch - 1ch
• Input range
  • 100 - 277 VAC; 47/63 Hz
• Power max (W)
  • 18
• Current
  • 0,07A@230VAC
• IP protection rating
  • 67
  • 68 optional
• IK grade protection
  • 08
• Dimensions d x h (mm)
  • 190 x 74,6
• Weight (Kgs)
  • 4
• Materials
  • Ultra clear 10mm tempered glass
  • All in stainless steel AISI304
• Mounting systems
  • Inground
• Product Category
  • Inground
• Case
  • AISI 304 (standard)
  • AISI 316 (optional)
  • Aluminium (optional)
  • Aluminium - Marine Grade (optional)
• FILTER-SING 105-W (art.900419)
  • No
  • Yes
• FILTER-SING 105 (art.900420)
  • No
  • Yes
• FILTER-DOUB 105 (art.900421)
  • No
  • Yes
• Plastic Case TER (art.900537)
  • No
  • Yes
