Product Description

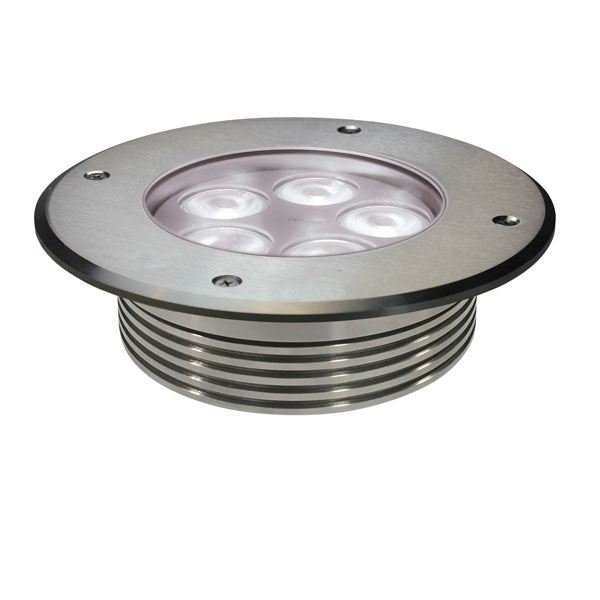

20V-48V version IP 67 stainless steel AISI 304 inground lighting fixture suitable for outdoor installations. It includes n. 5 x 100W Monochromatic LEDs. Plug-In version
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
|
Number of LEDs
|
10
|
Lumen MAX
|
2500
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters
|
None
f 17° tilt
f34° tilt
f 60°
f 65°
f 100°
f 8°x 60°
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H05 1,5mt
|
| Control | |
Control type
|
Plug-in
|
| Power supply | |
Input range
|
20 - 48 VDC
|
Power (W)
|
16
|
| Physical | |
IP protection rating
|
67
68 optional
|
IK grade protection
|
08
|
Dimensions d x h (mm)
|
190 x 52,5
|
Weight (Kgs)
|
2,7
|
Materials
|
Ultra clear 10mm tempered glass
|
Mounting systems
|
Inground
|
Colour finishing
|
Stainless steel
|
| Finishings | |
Case
|
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
|
