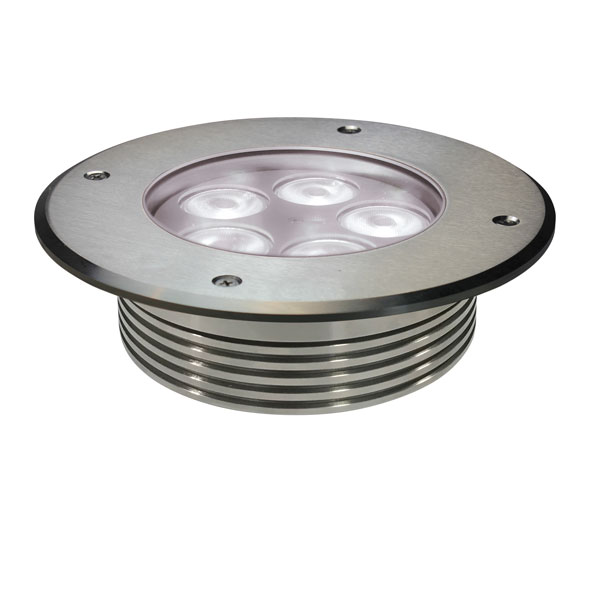

TERRA WL5 24V PLUG-IN (it. 210600)

TERRA WL5 24V PLUG-IN (it. 210600)

https://www.studiodue.com/web/image/product.template/1299/image_1920?unique=5a91a4b

20V-48V version with external power supply. IP 67 stainless steel AISI 304 inground lighting fixture suitable for outdoor installations. It includes n. 5 x 10W Monochromatic LEDs. Plug-In version.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Input range
  • Power max (W)
  • Current
  • IP protection rating
  • IK grade protection
  • Dimensions d x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Case
  • FILTER-SING 105-W (art.900419)
  • FILTER-SING 105 (art.900420)
  • FILTER-DOUB 105 (art.900421)
  • PS 1 TERRA-ARIA (art.552170)
  • PS 10 TERRA-ARIA (art. 550170)
  • PS 4 TERRA-ARIA (art.551170)
  • Plastic Case TER (art.900537)

This combination does not exist.

LED type WHITE 2700K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER
Number of LEDs 10
LED expected lifetime (hrs) 50000
Lumen max source (lm) 2500
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Filter f17° tilt, Filter f34° tilt, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical, Filter f65° frost
Connectors and cables Main Power: 3x1mm cable H05 1,5mt
Connettori e cavi (optional) Cable: type and length (optional)
Control type Plug-in
Input range CV 20 - 48 VDC
Power max (W) 16
Current 0,75A@24VDC
IP protection rating 67, 68 optional
Materials Ultra clear 10mm tempered glass, All in stainless steel AISI304
IK grade protection 08
Dimensions d x h (mm) 190 x 52,5
Weight (Kgs) 2,7
Mounting systems Inground
Case AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional)
FILTER-SING 105-W (art.900419) No, Yes
FILTER-SING 105 (art.900420) No, Yes
FILTER-DOUB 105 (art.900421) No, Yes
PS 1 TERRA-ARIA (art.552170) No, Yes
PS 10 TERRA-ARIA (art. 550170) No, Yes
PS 4 TERRA-ARIA (art.551170) No, Yes
Plastic Case TER (art.900537) No, Yes
