TERRA PLUS TL/316SS-T M (it. 207610)

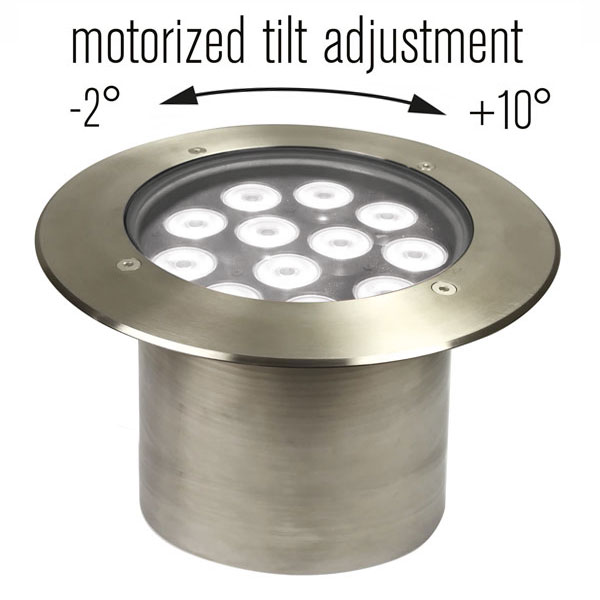

IP 67 protection rating inground White Balance fixture in stainless steel AISI 316 with 12 Monochromatic LEDs. Manual Pan 180°. Motorized Tilt adjustment -2° +10°. On-board power supply.
| LED type | WHITE 2700K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 12 |
| Lumen max source (lm) | 6000 |
| Lenses | 4° , 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Filter f17° tilt, Filter f34° tilt, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connectors and cables | Main Power: 3x1mm cable H07 0,6mt, DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female) |
| Control type | DMX - RDM |
| Functions | Dedicated DMX channel for Tilt, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, Flicker-free function |
| Setup | RDM/DRS |
| DMX channels | 4ch - 3ch - 1ch |
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 42 |
| Current | 0,19A@230VAC |
| Materials | Ultra clear 12mm tempered glass, All in stainless steel AISI316 |
| Tilt | -2° / +10° by DMX |
| IP protection rating | 67 |
| IK grade protection | 08 |
| Dimensions d x h (mm) | 290 x 200 |
| Weight (Kgs) | 5,5 |
| Mounting systems | Inground |
| Colour finishing | None |
| Product Category | Inground |
| Plastic Case TER-PLUS (art.900536) | No, Yes |
| FILTER-SING TERRA PLUS (art.900417) | No, Yes |
| FILTER-DOUB TERRA PLUS (art.900418) | No, Yes |
IP 67 protection rating inground White Balance fixture in stainless steel AISI 316 with 12 Monochromatic LEDs. Manual Pan 180°. Motorized Tilt adjustment -2° +10°. On-board power supply.
