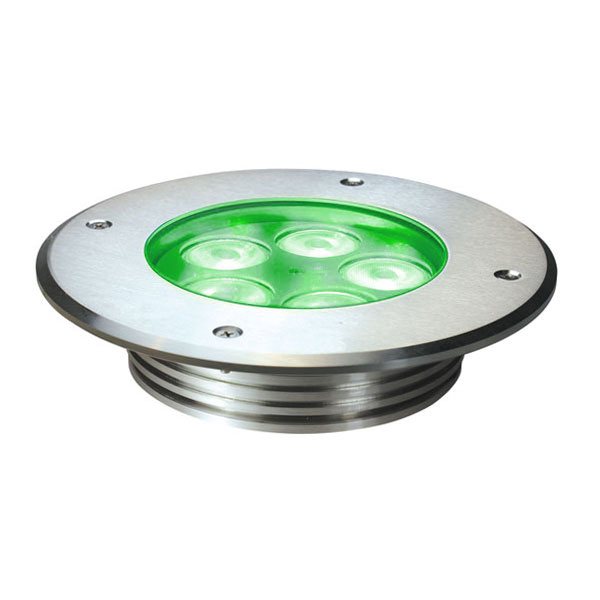

TERRA-L5 RGBW (it. 140140)

TERRA-L5 RGBW (it. 140140)

https://www.studiodue.com/web/image/product.template/1322/image_1920?unique=5a91a4b

IP 67 protection rating, it includes n.5 x 10W RGBW/Fc LEDs. External Power Supply. Stainless steel AISI 304 inground lighting fixture suitable for outdoor installations.

Not Available For Sale

  • LED type
  • Lumen max source (lm)
  • Red lumen (lm)
  • LED expected lifetime (hrs)
  • Green lumen (lm)
  • Number of LEDs
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • IP protection rating
  • IK grade protection
  • Mounting systems
  • Weight (Kgs)
  • Dimensions d x h (mm)
  • Product Category
  • Materials
  • Case
  • FILTER-SING 105-W (art.900419)
  • FILTER-SING 105 (art.900420)
  • FILTER-DOUB 105 (art.900421)
  • CD 1 TER RGBW-M (art.537170)
  • CD 10 TER RGBW-M (art.531170)
  • CD 4 TER RGBW-M (art.553170)
  • CONTROL BOX IC5 17V (art.510170)
  • MD BOX 17V (art. 500170)
  • Plastic Case TER (art.900537)

This combination does not exist.

Contact Us


IP 67 protection rating, it includes n.5 x 10W RGBW/Fc LEDs. External Power Supply. Stainless steel AISI 304 inground lighting fixture suitable for outdoor installations.

Specifications

Lighting source
LED type RGBW5050MULTICHIP
Lumen max source (lm) 1500
Red lumen (lm) 330
LED expected lifetime (hrs) 50000
Green lumen (lm) 770
Number of LEDs 5
Blu lumen (lm) 110
White lumen (lm) 715
Optics
Lenses 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (optional) None, Filter f17° tilt, Filter f34° tilt, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical, Filter f65° frost
Control
Control type DMX - RDM
Functions and Setup
Functions Control Driver esterno
Power supply
Input range 17 VDC
Power max (W) 18
Physical
IP protection rating 67, 68 optional
Materials Ultra clear 10mm tempered glass, All in stainless steel AISI304
IK grade protection 08
Mounting systems Inground
Weight (Kgs) 2,5
Dimensions d x h (mm) 190 x 47,5 mm
Product Category Inground
Finishings
Case AISI 304 (standard), AISI 316 (optional), Aluminium (optional), Aluminium - Marine Grade (optional)
Others
FILTER-SING 105-W (art.900419) No, Yes
FILTER-SING 105 (art.900420) No, Yes
FILTER-DOUB 105 (art.900421) No, Yes
CD 1 TER RGBW-M (art.537170) No, Yes
CD 10 TER RGBW-M (art.531170) No, Yes
CD 4 TER RGBW-M (art.553170) No, Yes
CONTROL BOX IC5 17V (art.510170) No, Yes
MD BOX 17V (art. 500170) No, Yes
Plastic Case TER (art.900537) No, Yes
