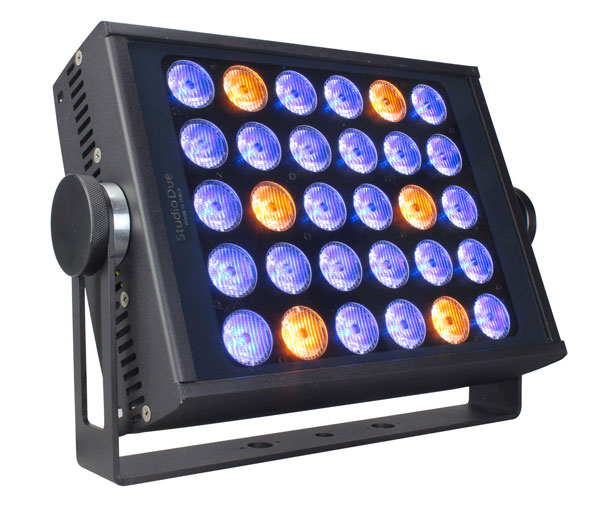

STUDIO 300 RGBWA (it. 176010)
Wash LED colorchanger fixture ( 24 RGBW + 12 Amber LEDs) with control panel (4 push buttons on the rear of the fixture). IP20 protection rating.
| LED type | RGBWA |
| Number of LEDs | 36 |
| Lumen max source (lm) | 14600 |
| Red lumen (lm) | 2200 |
| Green lumen (lm) | 5000 |
| Blu lumen (lm) | 700 |
| White lumen (lm) | 5000 |
| Amber lumen (lm) | 2400 |
| Lenses | 8°, 12°, 15°x30°, 15°x55°, 24°, 36°, 60° |
| Connectors and cables | Main Power: PowerCon IP65 connector (male-female), DMX signal: XLR5pin connector (male-female) |
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions | Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| Setup | RDM/DRS + push button panel |
| DMX channels | 10ch - 7ch - 6ch - 5ch |
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 160 |
| Current | 0,7A@230V |
| Power Factor | PF>0,95@230VAC |
| Materials | PMMA lenses, Polyester powder coated |
| Mounting systems | Surface, Truss (optional) |
| Colour finishing | Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1 |
| Marine Grade treatment | None, Yes |
| Tilt | 360° |
| IP protection rating | 20 |
| Sizes l x p x h (mm) | 365 x 90 x 265 |
| Weight (Kgs) | 6,6 |
| Product Category | Spot |
Documents
Wash LED colorchanger fixture ( 24 RGBW + 12 Amber LEDs) with control panel (4 push buttons on the rear of the fixture). IP20 protection rating.
