Product Description

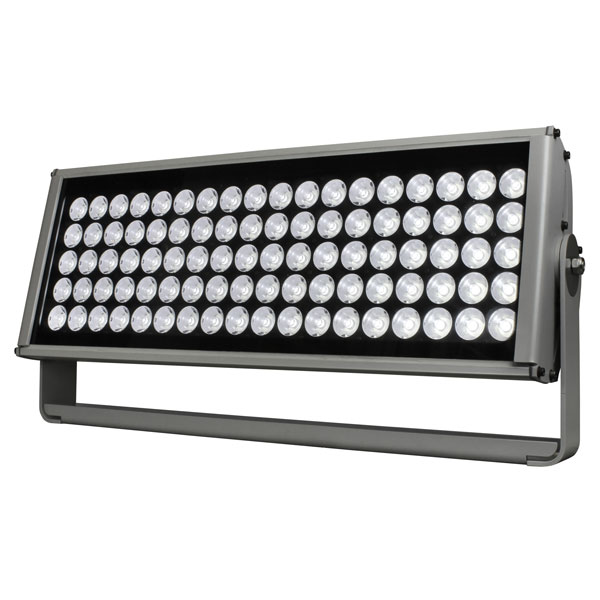

Optional DMX-RDM and DALI interface for STADIO 90

Downloads
Technical specification
LED type
WHITE 2700K
WHITE 3000K
WHITE 4000K
BIANCO 5600K
WHITE 6500K
Number of LEDs
90
LED expected lifetime (hrs)
50000
Lumen MAX
50000 (@6500K - lens 4°)
CRI
>70 (on request >80, >90)
Efficiency
150lm/W (light source), 130lm/W (fixture)
Lenses
15°
15°x30°
25°
40°
60°
Filters
None
f 30°
f 80°
f 100°
Connectors and cables
Main Power: 3x1mm cable H05 1,5mt
DMX signal: 4pin IP67 connector (male-female)
Control type
DMX - RDM + DALI
DMX - RDM + DALI + DMX - Wireless
Setup
RDM/DRS
Input range
100 - 277 VAC; 47/63 Hz
Power (W)
390
Materials
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
Mounting systems
Surface
Truss (optional)
Colour finishing
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
Marine Grade treatment
None
Yes
Tilt
180°
IP protection rating
67
Operating temperature
-30°C +45°C
Sizes l x p x h (mm)
770 x 160 x 340
Weight (Kgs)
17
