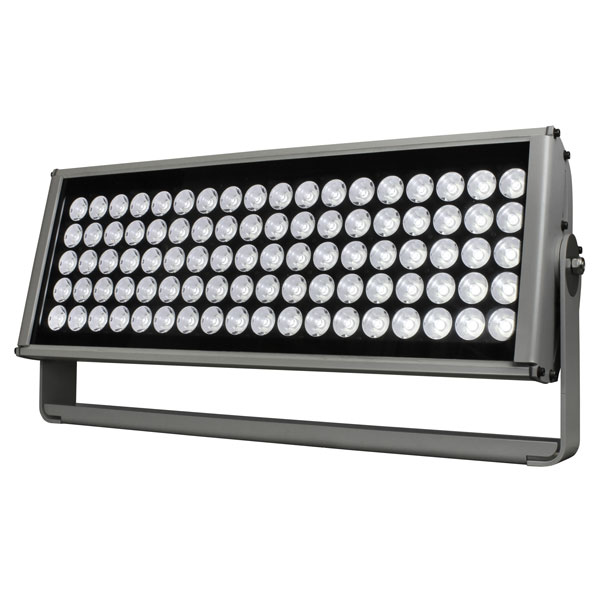

STADIO90 DMX-RDM DALI (art.220630)
Optional DMX-RDM and DALI interface for STADIO 90
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 5600K, WHITE 6500K |
| Number of LEDs | 90 |
| LED expected lifetime (hrs) | 50000 |
| Lumen source (lm) | 50000 (@6500K - lens 4°) |
| Efficiency | 150lm/W (light source), 130lm/W (fixture) |
| CRI | >70 (on request >80, >90) |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 10°x30°, 15°, 25°, 40°, 60° |
| Filters | No filter, f 30°, f 80°, f 100° |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H05 1,5mt, DMX signal: 4pin IP67 connector (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM + DALI, DMX - RDM + DALI + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Setup | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 390 |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Colour finishing | Grey RAL 9006 (standard) 1, Black RAL 9005 (optional), White RAL 9010 (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 770 x 160 x 340 |
| Tilt | 180° |
| Weight (Kgs) | 17 |
| Product Category | Wall Washer |
| IP protection rating | 67 |
| Optional/Accessories | |
|---|---|
| _MARINE GRADE TREATMENT (art.900546) | -, Marine grade treatment |
