STADIO 160 M PLUG-IN (it. 240000)

STADIO 160 M PLUG-IN (it. 240000)

https://www.studiodue.com/web/image/product.template/3299/image_1920?unique=5a91a4b

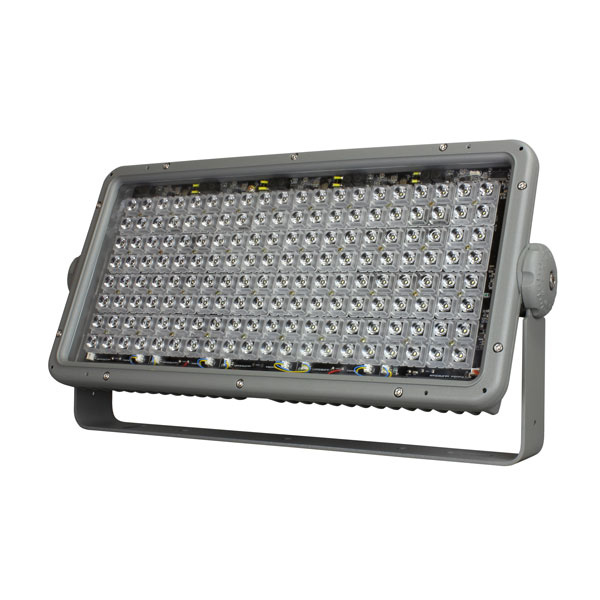

Powerful IP 67 Led lighting floodlight for accurate light distribution. On board power supply. Plug-in version.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Lenses
  • Connectors and cables
  • Control type
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • Tilt
  • IP protection rating
  • Operating temperature
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type Warm WHITE, Neutral WHITE, Cool WHITE
Number of LEDs 160
LED expected lifetime (hrs) 90000
Lumen max source (lm) 80000
Lenses 5° optional kit (Ultra Narrow), 10°, 25°, 50°, 90°
Connectors and cables Main Power: 3x1mm cable H05 1,5mt
Control type Plug-in
Input range 120 - 277 VAC; 47/63 Hz
Power max (W) 540
Current 2,4A@230VAC
Power Factor PF>0,95@230VAC
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Mounting systems Surface, Truss (optional)
Marine Grade treatment None, Yes
Tilt 180°
IP protection rating 67
Operating temperature -30°C +45°C
Sizes l x p x h (mm) 640 x 160 x 340
Weight (Kgs) 11
Colour finishing Grey RAL 9006 (standard) 1
Product Category Wall Washer
