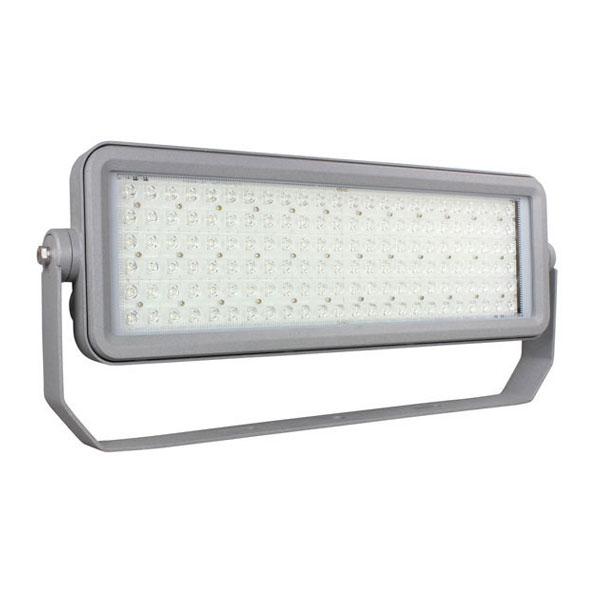

STADIO 144 M (it. 195230)
Specifications
| Lighting source | |
|---|---|
| LED type | High Power NICHIA NVSW319, WHITE 3000K, WHITE 4000K, WHITE 5750K |
| Number of LEDs | 144 |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | >50000 |
| Optics | |
|---|---|
| Lenses | 15°, 30°, 50°, 120° no lens |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + DALI |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power max (W) | 350 |
| Physical | |
|---|---|
| IP protection rating | 66, 67 |
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Sizes l x p x h (mm) | 768x136x310 |
| Weight (Kgs) | 10 |
| Product Category | Wall Washer |
| Colour finishing | Grey RAL 9006 (standard) |
