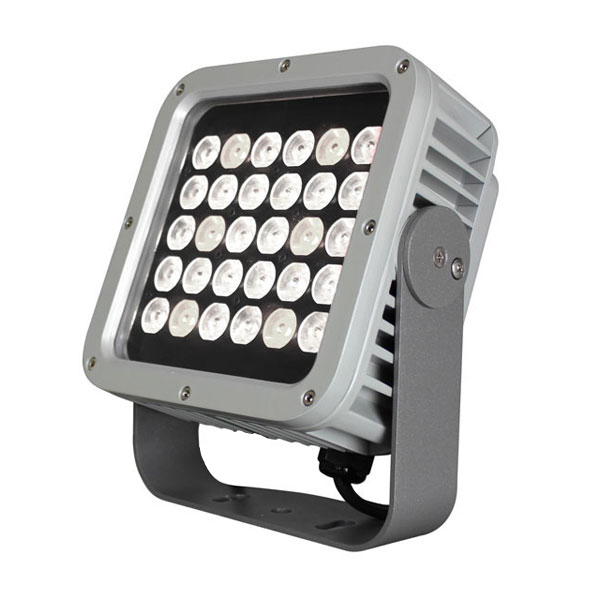

SMART MAX 30 M PLUG-IN (it.205300)
Compact design IP 67 floodlight Monochromatic projector. PLUG-IN version. n.30 White LEDs. 23 mm lenses.
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 5000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 30 NICHIA-NVSL219C |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 6000 |
| Lenses | 5°, 10°x30°, 12°, 15°x55°, 24°, 36°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connectors and cables | Main Power: 3x1,5mm cable |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control type | Plug-in |
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 38 |
| Current | 0,16A@230VAC |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Mounting systems | Surface, Truss (optional) |
| Colour finishing | Grey RAL 9006 (standard) , Any RAL (optional) |
| Marine Grade treatment | None, Yes |
| Tilt | 175° |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Sizes l x p x h (mm) | 205x110x235 |
| Weight (Kgs) | 3,2 |
| Product Category | Spot |
| SMM30-BD (art.900109) | No, Yes |
| SMM30-AG (art.900015) | No, Yes |
| SMM30-SN (art.900209) | No, Yes |
| SMM30-CL (art.900309) | No, Yes |
Compact design IP 67 floodlight Monochromatic projector. PLUG-IN version. n.30 White LEDs. 23 mm lenses.
