Descrizione prodotto

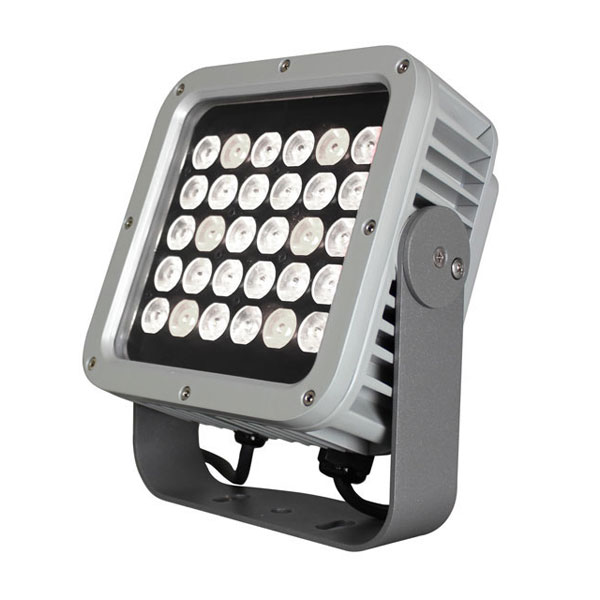

Compact floodlight Monochromatic and White Balance projector with compact design and robust aluminium case suitable for accent lighting

Downloads

UM_SMART series_low.pdf
Specifiche tecniche
LED type
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 5000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
Number of LEDs
30 NICHIA-NVSL219C
LED expected lifetime (hrs)
50000
Lumen MAX
6000
Lenses
10°x30°
12°
24°
36°
Filters (optional)
Elliptical projection filter 60° x 1° (1° = native lens): indicate horizontal or vertical
None
Connectors and cables
Main Power: 3x1,5mm cable
DMX signal: cable 0,6mt + 3pin IP67 M14 connector (male-female)
Connettori e cavi (optional)
Cable: type and length (optional)
Control type
DMX - RDM
DMX - RDM + Wireless (on request)
Functions
RDM/DRS
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
Flicker-free function
Setup
RDM/DRS
DMX channels
3ch - 1ch
Input range
100 - 240 VAC; 47/63 Hz
Power (W)
38
Current
0,16A@230VAC
Materials
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
Mounting systems
Surface
Truss (optional)
Colour finishing
Grey RAL 9006 (standard)
RAL 9006
Any RAL (optional)
Marine Grade treatment
None
Yes
Tilt
175°
IP protection rating
67
Sizes l x p x h (mm)
205x110x235
Weight (Kgs)
3,2
A - Anti glare SM30-BD
None
Yes
