Product Description

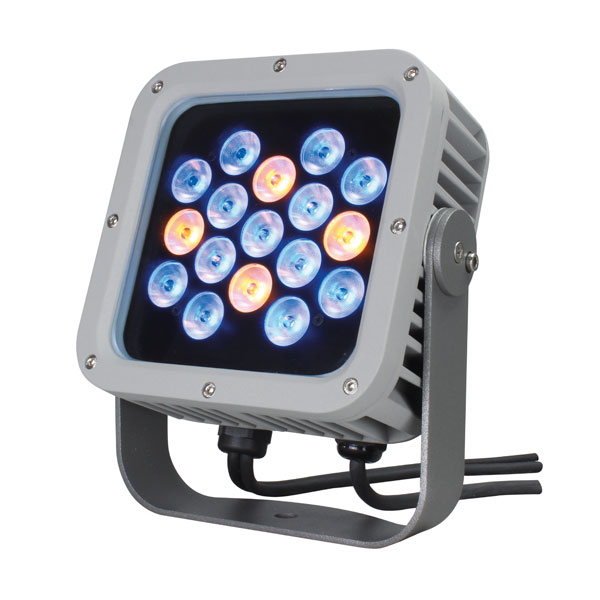

Small form factor, compact design IP 67 flood light projector. 13 RGB nW + 4 Amber LEDs. 23 mm lenses.

Downloads

UM_SMART series.pdf

ART.200110 - SMART 17 RGBWA.zip
Technical specification
Icon attribute
LED type
RGBWA
Number of LEDs
13 RGB-NW (White 4000K) + 4 PC-Amber (NICHIA Hi-Power)
LED expected lifetime (hrs)
50000
Lumen MAX
2670
Red lumen (lm)
520
Green lumen (lm)
850
Blu lumen (lm)
300
White lumen (lm)
800
Amber lumen (lm)
500
Lenses
10°x30°
12°
24°
36°
Filters (optional)
Diffuser filter on request: indicate a required value (X° - Y°)
Connectors and cables
Main Power: 3x1,5mm cable
DMX signal: cable 0,6mt + 3pin IP67 M14 connector (male-female)
Control type
Protocol USITT DMX512 - RDM
Protocol USITT DMX512 - RDM + Wireless (on request)
Functions
RDM/DRS
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
Setup
RDM/DRS
DMX channels
10ch - 7ch - 6ch - 5ch
Input range
100 - 240 VAC; 47/63 Hz
Power (W)
30
Current
0,13A@230VAC
Materials
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
Mounting systems
Surface
Truss (optional)
Tilt
175°
IP protection rating
67
Sizes l x p x h (mm)
175 x 95 x 205
Weight (Kgs)
2,2
Colour finishing
Grey RAL 9006 (standard)
Marine Grade treatment
None
Accessories - Barn door
None
Yes
