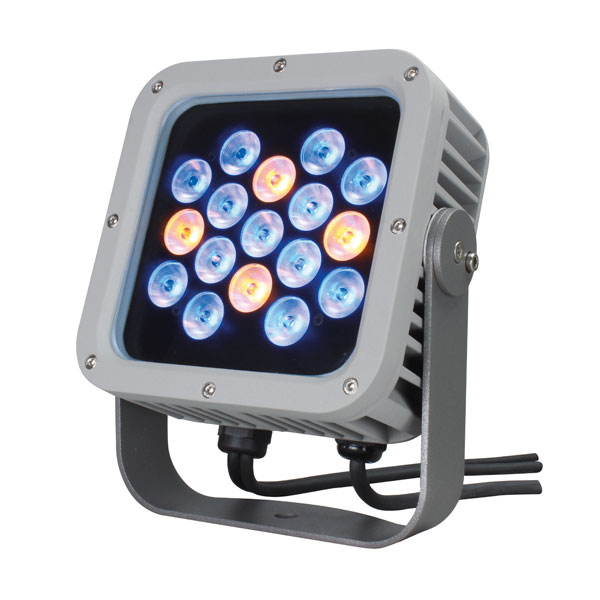

SMART 17 RGBWA (it. 200110)
Small form factor, compact design IP 67 flood light projector. 13 RGB nW + 4 Amber LEDs. 23 mm lenses.
Small form factor, compact design IP 67 flood light projector. 13 RGB nW + 4 Amber LEDs. 23 mm lenses.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBWA |
| Number of LEDs | 13 RGB-NW (White 4000K) + 4 PC-Amber (NICHIA Hi-Power) |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 2670 |
| Red lumen (lm) | 520 |
| Green lumen (lm) | 850 |
| Blu lumen (lm) | 300 |
| White lumen (lm) | 800 |
| Amber lumen (lm) | 500 |
| Optics | |
|---|---|
| Lenses | 10°x30°, 12°, 15°x55°, 24°, 36°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1,5mm cable, DMX signal: 0,6mt cable + 3pin IP67 M14 connector (male-female) |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS, Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| DMX channels | 10ch - 7ch - 6ch - 5ch |
| Setup | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 32 |
| Current | 0,14A@230VAC |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Colour finishing | Grey RAL 9006 (standard) , Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Tilt | 175° |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Sizes l x p x h (mm) | 175 x 95 x 205 |
| Marine Grade treatment | None |
| Weight (Kgs) | 2,2 |
| Product Category | Spot |
| Others | |
|---|---|
| SM17-BD (art.900110) | No, Yes |
| SM17-AG (art.900014) | No, Yes |
| SM17-SN (art.900208) | No, Yes |
| SM17-CL (art.900308) | No, Yes |
