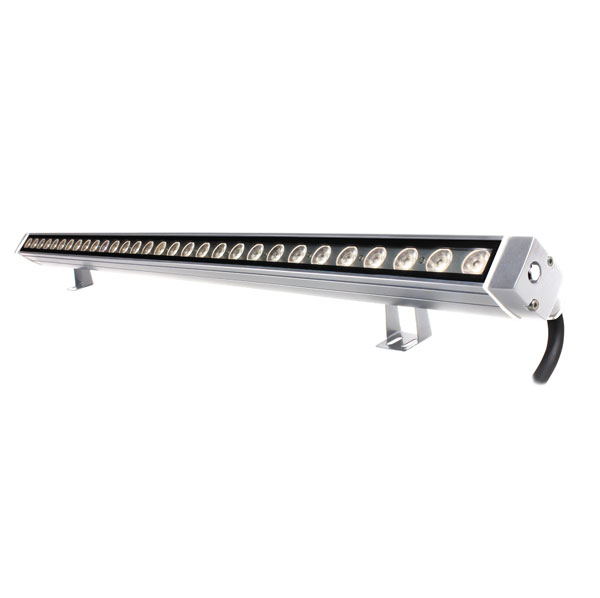

SLIMBAR PLUS WB 100cm (it. 201615)

https://www.studiodue.com/web/image/product.template/1415/image_1920?unique=5a91a4b

Ultra small form factor LED linear bar with n.14 (2700K) + n. 14 (6200K) LEDs bianchi. External Power Supply and Driver. With 23mm lenses. IP 67 protection rating. 50 cm, with n.7 (2700K) + n. 7 (6200 K) LEDs bianchi. Dimmable version. Standard 100 cm.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Control type
  • Input range
  • Power max (W)
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Mounting systems
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing
  • SB/P PILOT PLUS M DALI (art.524480)
  • SB/P PS PLUG-IN 320 M (art.532480)
  • SB/P PS PLUG-IN 60 M (art.560480)
  • SB/P PS PLUG-IN 150 M (art.515480)
  • SB/PILOT M DALI (art.533480)
  • SPS/P150-50 M (art.548150)
  • SPS/P320-50 M (art.548320)
  • SPS/P60-50 M (art.548060)
  • SB/P PILOT MAX M DALI (art.525480)

This combination does not exist.


Ultra small form factor LED linear bar with n.14 (2700K) + n. 14 (6200K) LEDs bianchi. External Power Supply and Driver. With 23mm lenses. IP 67 protection rating. 50 cm, with n.7 (2700K) + n. 7 (6200 K) LEDs bianchi. Dimmable version. Standard 100 cm.

Specifications

Lighting source
LED type CW+WW (5W)
Number of LEDs 28 (2700K-6200K)
Lumen max source (lm) 2400
Optics
Lenses 10°, 10°x30°, 15°x55°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Control
Control type External Control Driver
Power supply
Input range CV 48 VDC
Power max (W) 16
Physical
Mounting systems Surface, Truss (optional)
IP protection rating 67
IK grade protection 07
Sizes l x p x h (mm) 1005 x40 x 60 mm
Marine Grade treatment None
Weight (Kgs) 2
Product Category Linear Bar
Colour finishing Anodized light grey
Others
SB/P PILOT PLUS M DALI (art.524480) No, Yes
SB/P PS PLUG-IN 320 M (art.532480) No, Yes
SB/P PS PLUG-IN 60 M (art.560480) No, Yes
SB/P PS PLUG-IN 150 M (art.515480) No, Yes
SB/PILOT M DALI (art.533480) No, Yes
SPS/P150-50 M (art.548150) No, Yes
SPS/P320-50 M (art.548320) No, Yes
SPS/P60-50 M (art.548060) No, Yes
SB/P PILOT MAX M DALI (art.525480) No, Yes
