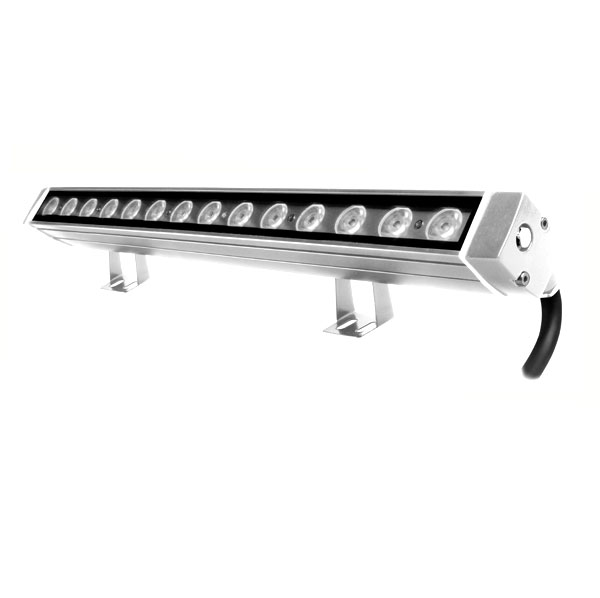

SLIMBAR PLUS W 50cm (it. 201412)
Ultra small form factor LED linear bar 50 cm long (on request) with n.15 neutral white LEDs. External Power Supply and driver. 23mm lenses. IP 67 protection rating. Dimmable version. Standard 100cm.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2900K high efficiency mid power, WHITE 4000K high efficiency mid power |
| Number of LEDs | 15 |
| Lumen source (lm) | 1200 |
| Optics | |
|---|---|
| Lenses | 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Control | |
|---|---|
| Control type | External Control Driver |
| Power supply | |
|---|---|
| Input range | CV 48 VDC |
| Power max (W) | 8 |
| Current | 0,17A@48VDC |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Sizes l x p x h (mm) | 525 x 40 x 60 |
| Marine Grade treatment | Standard finish |
| Weight (Kgs) | 1 |
| Product Category | Linear Bar |
| Colour finishing | Anodized light grey |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Others | |
|---|---|
| SB/P PILOT MAX M DALI (art.525480) | No, Yes |
| SB/P PILOT PLUS M DALI (art.524480) | No, Yes |
| SB/P PS PLUG-IN 150 M (art.515480) | No, Yes |
| SB/P PS PLUG-IN 320 M (art.532480) | No, Yes |
| SB/P PS PLUG-IN 60 M (art.560480) | No, Yes |
| SB/PILOT M DALI (art.533480) | No, Yes |
| SPS/P150-50 M (art.548150) | No, Yes |
| SPS/P320-50 M (art.548320) | No, Yes |
| SPS/P60-50 M (art.548060) | No, Yes |
