SLIMBAR PLUS W 100cm (it. 201415)

https://www.studiodue.com/web/image/product.template/1417/image_1920?unique=5a91a4b

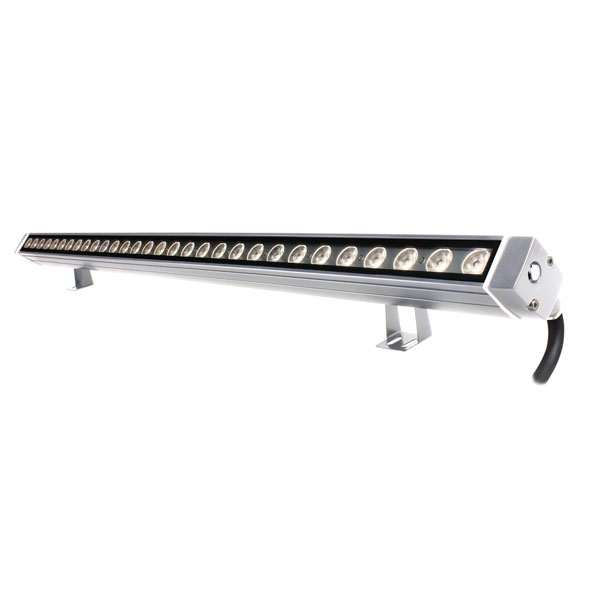

Ultra small form factor LED linear bar 100cm long with n. 30 neutral white LEDs. External Power Supply and Driver. With 23mm lenses. IP 67 protection rating. 50cm, with n. 15 neutral white LEDs, also available. Dimmable version. Standard 100cm.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Lenses
  • Filters (optional)
  • Control type
  • Input range
  • Power max (W)
  • Current
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • SB/P PILOT PLUS M DALI (art. 524480)
  • SB/PILOT M DALI (art.533480)
  • SB/P PS PLUG-IN 320 M (art.532480)
  • SB/P PS PLUG-IN 150 M (art.515480)
  • SB/P PS PLUG-IN 60 M (art.560480)
  • SB/P PILOT MAX M DALI (art.525480)
  • SB/P PILOT PLUS M DALI (art.524480)
  • SPS/P320-50 M (art.548320)
  • SPS/P150-50 M (art.548150)
  • SPS/P60-50 M (art.548060)

This combination does not exist.

LED type BIANCO 2900K high efficiency mid power, BIANCO 4000K high efficiency mid power
Number of LEDs 30
Lumen max source (lm) 2400
Lenses 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Control type External Control Driver
Input range CV 48 VDC
Power max (W) 16
Current 0,34A@48VDC
IP protection rating 67
IK grade protection 07
Sizes l x p x h (mm) 1005 x40 x 60 mm
Weight (Kgs) 2
Mounting systems Surface
Colour finishing Anodized light grey
Marine Grade treatment None
Product Category Linear Bar
SB/P PILOT PLUS M DALI (art. 524480) No, Yes
SB/PILOT M DALI (art.533480) No, Yes
SB/P PS PLUG-IN 320 M (art.532480) No, Yes
SB/P PS PLUG-IN 150 M (art.515480) No, Yes
SB/P PS PLUG-IN 60 M (art.560480) No, Yes
SB/P PILOT MAX M DALI (art.525480) No, Yes
SB/P PILOT PLUS M DALI (art.524480) No, Yes
SPS/P320-50 M (art.548320) No, Yes
SPS/P150-50 M (art.548150) No, Yes
SPS/P60-50 M (art.548060) No, Yes
