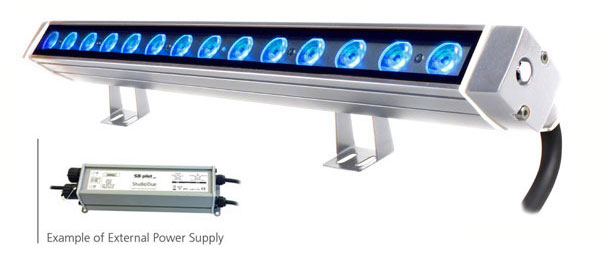

SLIMBAR PLUS RGBW 50cm (it. 201212)

https://www.studiodue.com/web/image/product.template/28/image_1920?unique=5a91a4b

Very small LED linear bar with no.14 RGBW LEDs. External Power Supply and Driver. 23mm lenses. IP 67 degree of protection.


Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Control type
  • Input range
  • Power max (W)
  • IP protection rating
  • Sizes l x p x h (mm)
  • Mounting systems
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing
  • IK grade protection
  • SB/P PILOT DRS RGBW-M (art.523480)
  • SB/P PILOT PLUS DRS RGBW-M (art.522480)
  • CONTROL BOX IC5 48V (art. 510480)
  • MD BOX 48V (art.500480)
  • SB/P PILOT MAX RGBW-M (art.520480)
  • SB/P PILOT PLUS RGBW-M (art.521480)

This combination does not exist.


Specifications

Lighting source
LED type RGB-NW (white 4000K)
Number of LEDs 14
Lumen max source (lm) 1000
Red lumen (lm) 280
Green lumen (lm) 420
Blu lumen (lm) 140
White lumen (lm) 440
Optics
Lenses 10°, 10°x30°, 15°x55°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Control
Control type External Control Driver
Power supply
Input range CV 48 VDC
Power max (W) 18
Physical
Mounting systems Surface, Truss (optional)
IP protection rating 67
Sizes l x p x h (mm) 525 x 40 x 60 mm.
Marine Grade treatment None
Weight (Kgs) 1
Product Category Linear Bar
Colour finishing Anodized light grey
IK grade protection 07
Others
SB/P PILOT DRS RGBW-M (art.523480) No, Yes
SB/P PILOT PLUS DRS RGBW-M (art.522480) No, Yes
CONTROL BOX IC5 48V (art. 510480) No, Yes
MD BOX 48V (art.500480) No, Yes
SB/P PILOT MAX RGBW-M (art.520480) No, Yes
SB/P PILOT PLUS RGBW-M (art.521480) No, Yes
