Product Description

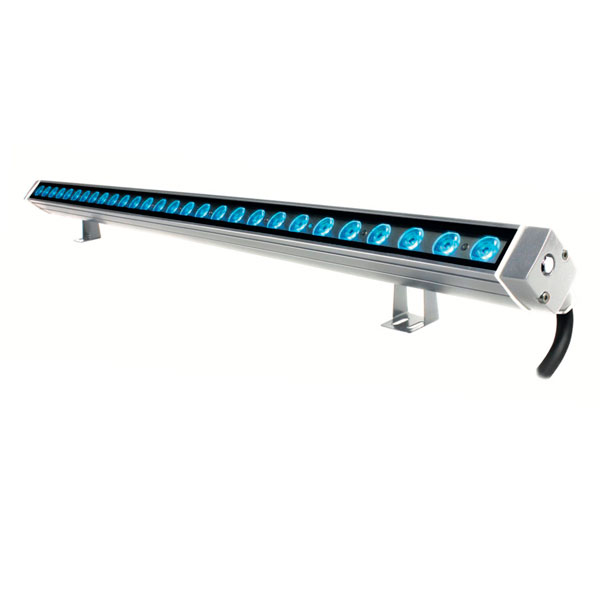

Very small LED linear bar with no.28 RGBW LEDs. External Power Supply and Driver. 23mm lenses. IP 67 degree of protection. Standard 100cm. Also available 50cm, with n.14 LEDs.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGB-NW (white 4000K)
|
Number of LEDs
|
28
|
Lumen max (lm)
|
2000
|
Red lumen (lm)
|
560
|
Green lumen (lm)
|
840
|
Blu lumen (lm)
|
280
|
White lumen (lm)
|
880
|
| Optics | |
Lenses
|
10°
10°x30°
15°x55°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x n° (n° = native lens) horizontal
|
| Control | |
Control type
|
External Control Driver
|
| Power supply | |
Input range
|
CV 48 VDC
|
Power max (W)
|
36
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
1005 x40 x 60 mm
|
Weight (Kgs)
|
2
|
Colour finishing
|
Anodized light grey
|
Marine Grade treatment
|
None
|
| Uncategorized | |
SB/P PILOT PLUS DRS RGBW-M (art.522480)
|
No
Yes
|
SB/P PILOT DRS RGBW-M (art.523480)
|
No
Yes
|
MD BOX 48V (art.500480)
|
No
Yes
|
CONTROL BOX IC5 48V (art. 510480)
|
No
Yes
|
SB/P PILOT MAX RGBW-M (art.520480)
|
No
Yes
|
SB/P PILOT PLUS RGBW-M (art.521480)
|
No
Yes
|
