Product Description

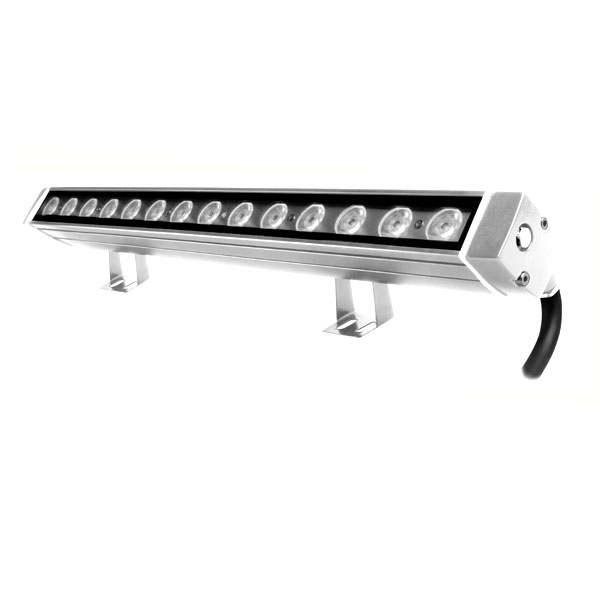

Ultra small form factor LED linear bar with 50cm long (on request). n.14 RGBnW LEDs. On board Power Supply. With 23mm lenses. Also available 30cm. long with n.10 LEDs. IP67 protection rating. Standard 100cm. Dimmable version
Technical specification
| Lighting source | |
|---|---|
LED type
|
BIANCO 2900K high efficiency mid power
BIANCO 4000K high efficiency mid power
|
Number of LEDs
|
15
|
Lumen max (lm)
|
2000
|
| Optics | |
Lenses
|
5°
10°
10°x30°
15°x55°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x n° (n° = native lens) horizontal
|
| Connections | |
Connectors and cables
|
Combo-cable 2x1mm Red-Black + 2x0.25mm shielded + 1x1mm Earth - cable 0.6mt
|
Connettori e cavi (optional)
|
Cable: type and length (optional)
|
| Control | |
Control type
|
DMX - RDM
|
| Functions and Setup | |
Functions
|
RDM/DRS
|
| Power supply | |
Input range
|
200 - 240 VAC; 47/63 Hz
|
Power max (W)
|
18
|
Daisy chain Power+DMX (max n. fixture)
|
16
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
525x40x60
|
Weight (Kgs)
|
1
|
Colour finishing
|
Anodized light grey
|
Marine Grade treatment
|
None
|
