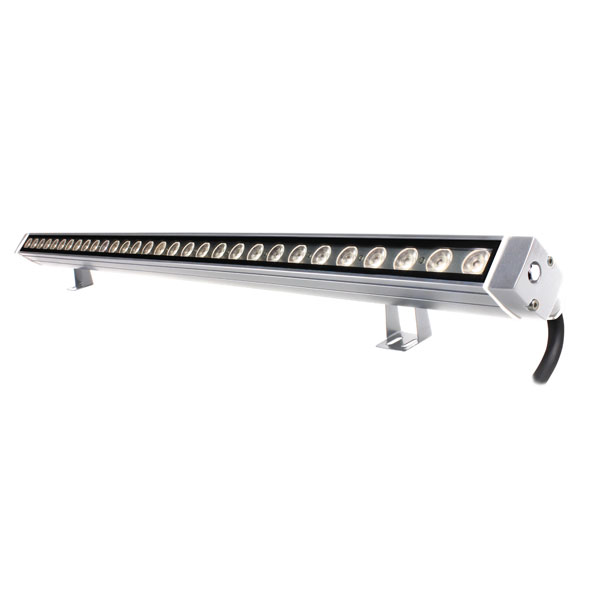

SLIMBAR PLUS POB W 100 cm (it. 201315)
Ultra small form factor LED linear bar with n.28 neutral white LEDs. On board Power Supply. With 23mm lenses. IP 67 protection rating. Standard 100cm. 50cm (n.14 neutral white LEDs) also available. Dimmable version
Documents
Ultra small form factor LED linear bar with n.28 neutral white LEDs. On board Power Supply. With 23mm lenses. IP 67 protection rating. Standard 100cm. 50cm (n.14 neutral white LEDs) also available. Dimmable version
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | BIANCO 2900K high efficiency mid power, BIANCO 4000K high efficiency mid power |
| Lumen max source (lm) | 4000 |
| Number of LEDs | 30 |
| Optics | |
|---|---|
| Lenses | 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connections | |
|---|---|
| Connectors and cables | Combo-cable 2x1mm Red-Black + 2x0.25mm shielded + 1x1mm Earth - cable 0.6mt |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DMX - RDM |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 200 - 240 VAC; 47/63 Hz |
| Power max (W) | 34 |
| Daisy chain Power+DMX (max n. fixture) | 16 |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Sizes l x p x h (mm) | 1005 x40 x 60 mm |
| Marine Grade treatment | None |
| Weight (Kgs) | 2 |
| Product Category | Linear Bar |
| Colour finishing | Anodized light grey |
