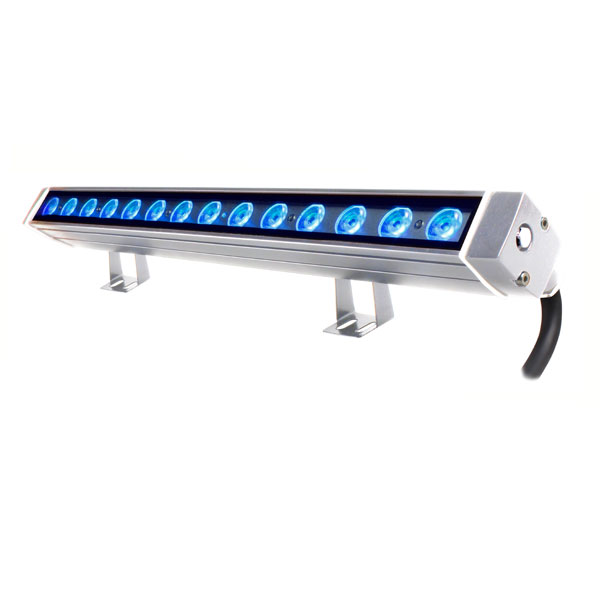

SLIMBAR PLUS POB RGBW 50cm (it. 201112)
Very small LED linear bar with no.14 RGBW LEDs. On-board power supply. 23mm lenses. IP 67 degree of protection. Standard 100cm. Also available 30cm with n.9 LEDs.
Very small LED linear bar with no.14 RGBW LEDs. On-board power supply. 23mm lenses. IP 67 degree of protection. Standard 100cm. Also available 30cm with n.9 LEDs.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGB-NW (white 4000K) |
| Lumen max source (lm) | 1750 |
| Red lumen (lm) | 400 |
| Green lumen (lm) | 600 |
| Number of LEDs | 14 |
| Blu lumen (lm) | 200 |
| White lumen (lm) | 625 |
| Optics | |
|---|---|
| Lenses | 10°, 10°x30°, 15°x55°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connections | |
|---|---|
| Connectors and cables | Combo-cable 2x1mm Red-Black + 2x0.25mm shielded + 1x1mm Earth - cable 0.6mt |
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DMX - RDM |
| Functions and Setup | |
|---|---|
| Functions | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 200 - 240 VAC; 47/63 Hz |
| Power max (W) | 32 |
| Daisy chain Power+DMX (max n. fixture) | 16 |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Sizes l x p x h (mm) | 525 x 40 x 60 mm. |
| Marine Grade treatment | None |
| Weight (Kgs) | 1 |
| Product Category | Linear Bar |
| Colour finishing | Anodized light grey |
