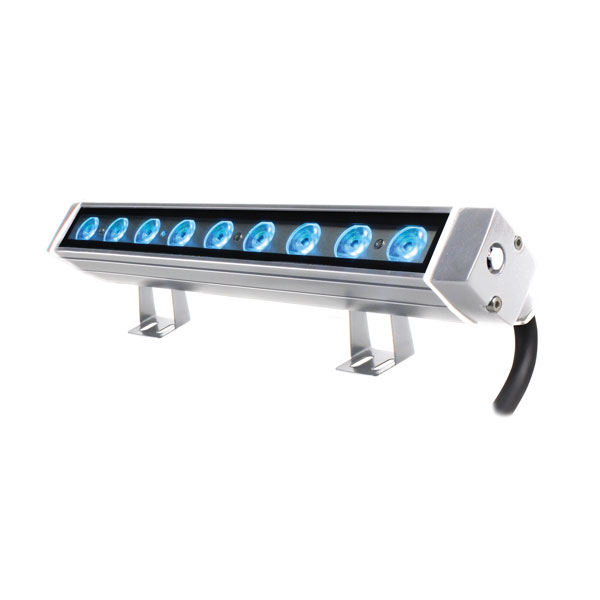

SLIMBAR PLUS POB RGBW 30cm (it. 201111)

https://www.studiodue.com/web/image/product.template/3425/image_1920?unique=5a91a4b

Very small LED linear bar with n.9 RGBW LEDs. On-board power supply. 23mm lenses. IP 67 degree of protection. Standard 100cm. Also available 50cm with n.14 LEDs.

Not Available For Sale

  • LED type
  • Number of LEDs
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • Daisy chain Power+DMX (max n. fixture)
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category

This combination does not exist.

LED type RGB-NW (white 4000K)
Number of LEDs 9
Lumen max source (lm) 1125
Red lumen (lm) 255
Green lumen (lm) 385
Blu lumen (lm) 125
White lumen (lm) 400
Lenses 10°, 10°x30°, 15°x55°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connectors and cables Combo-cable 2x1mm Red-Black + 2x0.25mm shielded + 1x1mm Earth - cable 0.6mt
Connettori e cavi (optional) Cable: type and length (optional)
Control type DMX - RDM
Functions RDM/DRS
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 19
Daisy chain Power+DMX (max n. fixture) 16
Mounting systems Surface, Truss (optional)
IP protection rating 67
IK grade protection 07
Sizes l x p x h (mm) 315 x 40 x 60
Weight (Kgs) 0,5
Colour finishing Anodized light grey
Marine Grade treatment None
Product Category Linear Bar
Contact Us


Very small LED linear bar with n.9 RGBW LEDs. On-board power supply. 23mm lenses. IP 67 degree of protection. Standard 100cm. Also available 50cm with n.14 LEDs.
