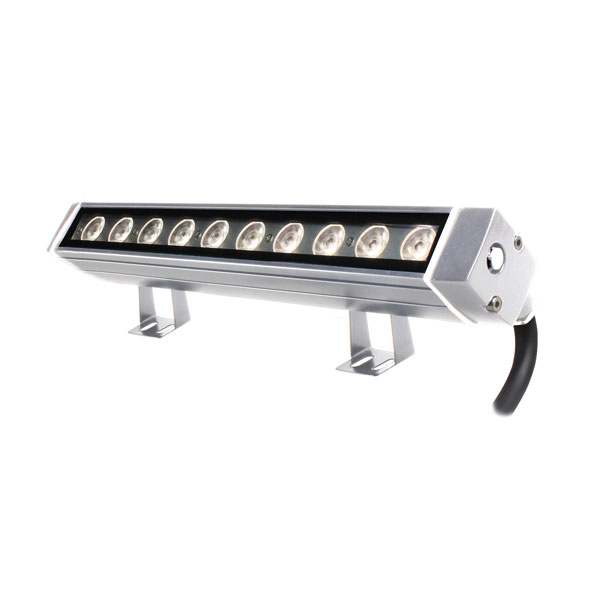

SLIMBAR PLUS POB PLUG-IN W 30cm (art. 201301)

https://www.studiodue.com/web/image/product.template/3304/image_1920?unique=f210a10

Ultra small form factor LED linear bar with n. 10 neutral white LEDs. On board Power Supply. With 23mm lenses. IP 67 protection rating. Standard 100cm. 50 cm (n.15 RGBnW) also available. Pug-In version.






Specifications

Lighting source
LED type WHITE 2900K high efficiency mid power, WHITE 4000K high efficiency mid power
Number of LEDs 10
Lumen source (lm) 1500
Optics
Lenses 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60°
Filters (optional) Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connections
Connectors and cables Main Power: 3pin IP67 connector (male-female)
Connectors and cables (optional) Cable: type and length (optional)
Control
Control type Plug-in
Functions and Setup
Functions N/A
Power supply
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 11
Daisy chain Power+DMX (max n. fixture) 16
Physical
Mounting systems Surface, Truss (optional)
Sizes l x p x h (mm) 300 x 40 x 60
Marine Grade treatment Standard finish
Weight (Kgs) 0,5
Product Category Linear Bar
Colour finishing Anodized light grey
IP protection rating 67
IK grade protection 07
