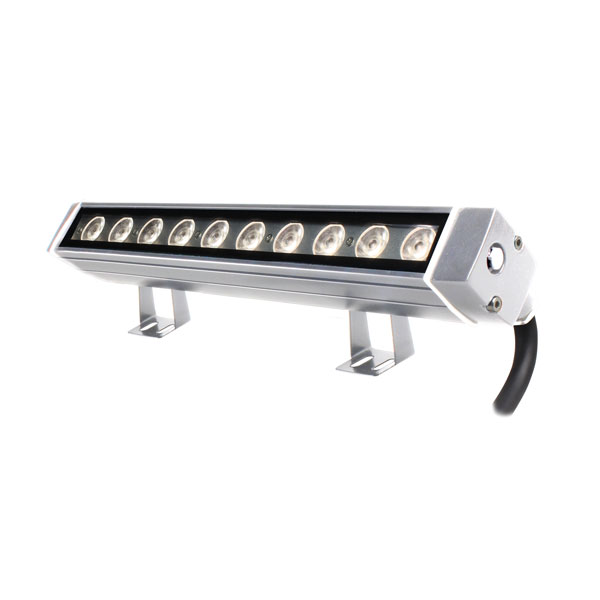

SLIMBAR PLUS POB PLUG-IN W 30cm (art. 201301)
Ultra small form factor LED linear bar with n. 10 neutral white LEDs. On board Power Supply. With 23mm lenses. IP 67 protection rating. Standard 100cm. 50 cm (n.15 RGBnW) also available. Pug-In version.
Documents
Ultra small form factor LED linear bar with n. 10 neutral white LEDs. On board Power Supply. With 23mm lenses. IP 67 protection rating. Standard 100cm. 50 cm (n.15 RGBnW) also available. Pug-In version.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | BIANCO 2900K high efficiency mid power, BIANCO 4000K high efficiency mid power |
| Number of LEDs | 10 |
| Lumen max source (lm) | 1500 |
| Optics | |
|---|---|
| Lenses | 5°, 10°, 10°x30°, 15°x55°, 25°, 40°, 60° |
| Filters (optional) | Elliptical projection filter 60° x n° (n° = native lens) horizontal |
| Connections | |
|---|---|
| Connettori e cavi (optional) | Cable: type and length (optional) |
| Connectors and cables | Main Power: 3pin IP67 connector (male-female) |
| Control | |
|---|---|
| Control type | Plug-in |
| Functions and Setup | |
|---|---|
| Functions | N/A |
| Power supply | |
|---|---|
| Input range | 200 - 240 VAC; 47/63 Hz |
| Power max (W) | 11 |
| Daisy chain Power+DMX (max n. fixture) | 16 |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Sizes l x p x h (mm) | 315 x 40 x 60 |
| Marine Grade treatment | None |
| Weight (Kgs) | 0,5 |
| Product Category | Linear Bar |
| Colour finishing | Anodized light grey |
