SLIMBAR PLUS POB PLUG-IN W 100cm (it. 201305)

https://www.studiodue.com/web/image/product.template/283/image_1920?unique=5a91a4b

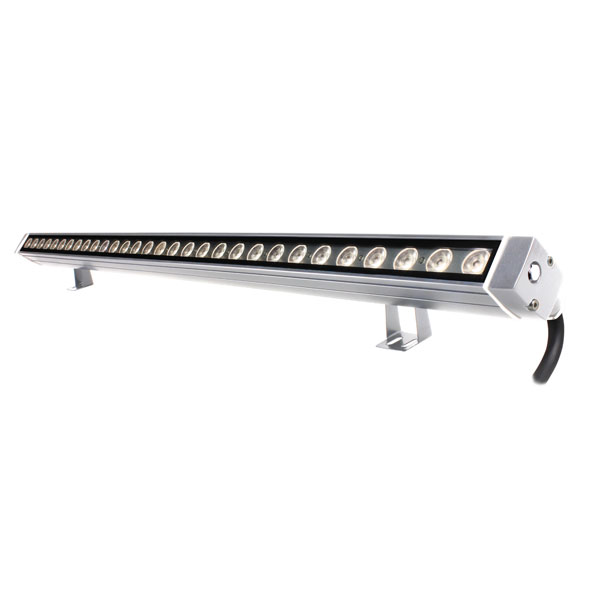

Ultra small form factor LED linear bar with n. 28 neutral white LEDs. On board Power Supply. With 23mm lenses. IP 67 protection rating. Standard 100cm. Also available 50 cm (n.14 LEDs) or 30cm (n.10 LEDs). Pug-In version.

Not Available For Sale

  • LED type
  • Lumen max source (lm)
  • Number of LEDs
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • Daisy chain Power+DMX (max n. fixture)
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Mounting systems
  • Marine Grade treatment
  • Weight (Kgs)
  • Product Category
  • Colour finishing

This combination does not exist.


Ultra small form factor LED linear bar with n. 28 neutral white LEDs. On board Power Supply. With 23mm lenses. IP 67 protection rating. Standard 100cm. Also available 50 cm (n.14 LEDs) or 30cm (n.10 LEDs). Pug-In version.

Specifications

Lighting source
LED type BIANCO 2900K high efficiency mid power, BIANCO 4000K high efficiency mid power
Lumen max source (lm) 4000
Number of LEDs 30
Optics
Lenses , 10°, 10°x30°, 15°x55°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal
Connections
Connectors and cables Main Power: 3pin IP67 connector (male-female)
Connettori e cavi (optional) Cable: type and length (optional)
Control
Control type Plug-in
Functions and Setup
Functions N/A
Power supply
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 34
Daisy chain Power+DMX (max n. fixture) 16
Physical
Mounting systems Surface, Truss (optional)
IP protection rating 67
IK grade protection 07
Sizes l x p x h (mm) 1005 x40 x 60 mm
Marine Grade treatment None
Weight (Kgs) 2
Product Category Linear Bar
Colour finishing Anodized light grey
