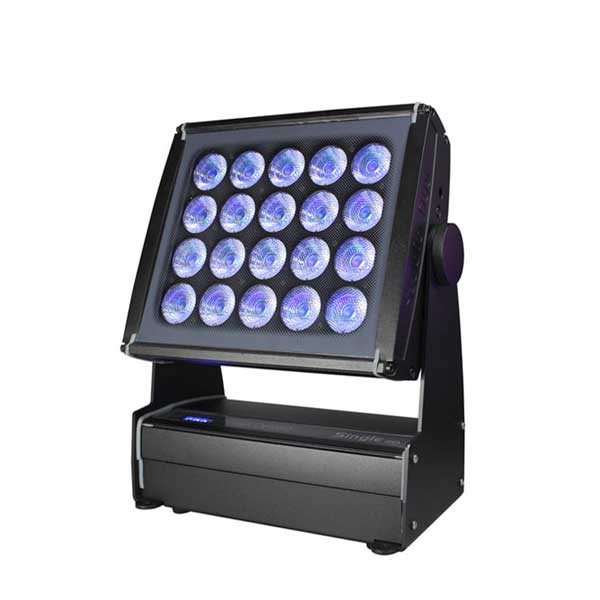

SINGLE 20HP RGBW (it.140210)

SINGLE 20HP RGBW (it.140210)

https://www.studiodue.com/web/image/product.template/245/image_1920?unique=508ed4e

Hi Power wash LED colorchanger with high brightness RGBW LEDs even more powerful. Lighting fixtures with a large and uniform light output. IP 67 protection rating.


Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Colour temperature range (K)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Inrush current
  • IP protection rating
  • IK grade protection
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • Accessories - Flight case
  • Accessories - Anti glare
  • Accessories - Barn door
  • 280-BD (art.900108)
  • 280-AG (art.900008)
  • 280LED-FROST (art.900410)
  • SINGLE CASEx2 (art. a richiesta) Flight Case
  • CLAMP/C (art.900516)
  • FFB (art.900517)
  • SAFETY WIRE/C (art.900523)

This combination does not exist.

LED type RGBW5050MULTICHIP
Number of LEDs 20
LED expected lifetime (hrs) 50000
Lumen max source (lm) 14000
Red lumen (lm) 3360
Green lumen (lm) 4700
Blu lumen (lm) 1000
White lumen (lm) 6200
Colour temperature range (K) 2000 - 10000
Lenses 6°, 10°, 15°, 25°, 40°, 60°
Filters (optional) None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Connectors and cables Main Power: 3x1mm cable H05 1,5mt, DMX signal: 4pin IP67 connector (male-female)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS + touch control panel
DMX channels 10ch - 9ch - 4ch
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 160
Current 0,7A@230VAC
Inrush current 80A@230V
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
IP protection rating 67
IK grade protection 07
Sizes l x p x h (mm) 355 x 184 x 415 mm
Weight (Kgs) 12
Product Category Wall Washer
Accessories - Flight case None, Yes
Accessories - Anti glare None, Yes
Accessories - Barn door None, Yes
280-BD (art.900108) No, Yes
280-AG (art.900008) No, Yes
280LED-FROST (art.900410) No, Yes
SINGLE CASEx2 (art. a richiesta) Flight Case No, Yes
CLAMP/C (art.900516) No, Yes
FFB (art.900517) No, Yes
SAFETY WIRE/C (art.900523) No, Yes
