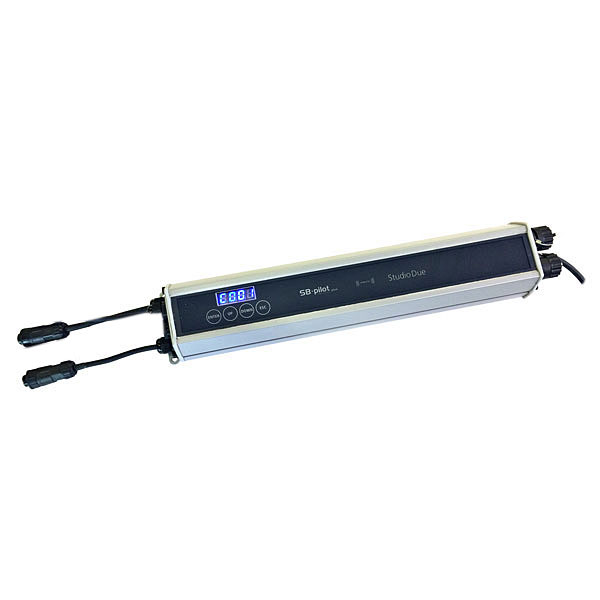

SB/P PILOT PLUS RGBW-M (it.521480)

SB/P PILOT PLUS RGBW-M (it.521480)

https://www.studiodue.com/web/image/product.template/3342/image_1920?unique=5a91a4b

4 channels DMX Control Drive to control up to 4mt. of RGBW SLIMBAR or 9mt. of MONOCHROMATIC SLIMBAR. With control panel. IP 65 protection rating. Voltage 48V.

Not Available For Sale

  • Connectors and cables
  • Output
  • Functions
  • Setup
  • Input range
  • Power max (W)
  • Current
  • Output voltage
  • IP protection rating
  • Product Category

This combination does not exist.

Connectors and cables DMX signal: 4pin IP67 connector (male-female)
Output n.2 x 48V constant voltage output
Functions Smooth dimming function, Halogen simulation, Flicker-free function
Setup Touch control panel
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 150
Current 0,65A@230VAC
Output voltage 48V
IP protection rating 65
Product Category Controller
