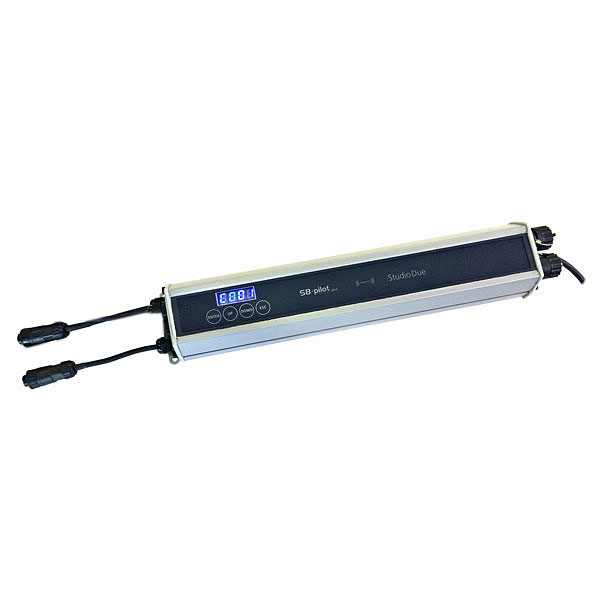

SB/P PILOT PLUS RGBW-M (it.521480)

SB/P PILOT PLUS RGBW-M (it.521480)

https://www.studiodue.com/web/image/product.template/3342/image_1920?unique=5a91a4b

4 channels DMX Control Drive to control up to 4mt. of RGBW SLIMBAR or 9mt. of MONOCHROMATIC SLIMBAR. With control panel. IP 65 protection rating. Voltage 48V.

Not Available For Sale

  • Connectors and cables
  • Output
  • Functions
  • Setup
  • Input range
  • Power max (W)
  • Current
  • Output voltage
  • IP protection rating
  • Product Category

This combination does not exist.

Contact Us


4 channels DMX Control Drive to control up to 4mt. of RGBW SLIMBAR or 9mt. of MONOCHROMATIC SLIMBAR. With control panel. IP 65 protection rating. Voltage 48V.

Specifications

Connections
Connectors and cables DMX signal: 4pin IP67 connector (male-female)
Control
Output n.2 x 48V constant voltage output
Functions and Setup
Functions Smooth dimming function, Halogen simulation, Flicker-free function
Setup Touch control panel
Power supply
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 150
Current 0,65A@230VAC
Output voltage 48V
Physical
IP protection rating 65
Product Category Controller
