prova ARCHILED 400 RGBWA (art.220210)

https://www.studiodue.com/web/image/product.template/4662/image_1920?unique=cb70450

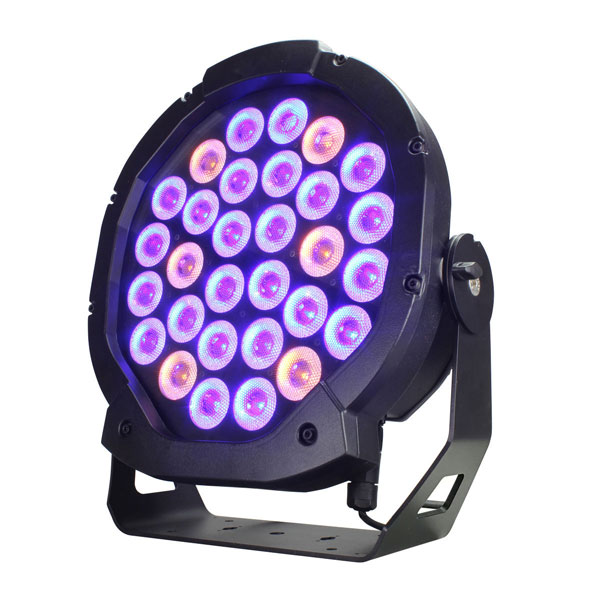

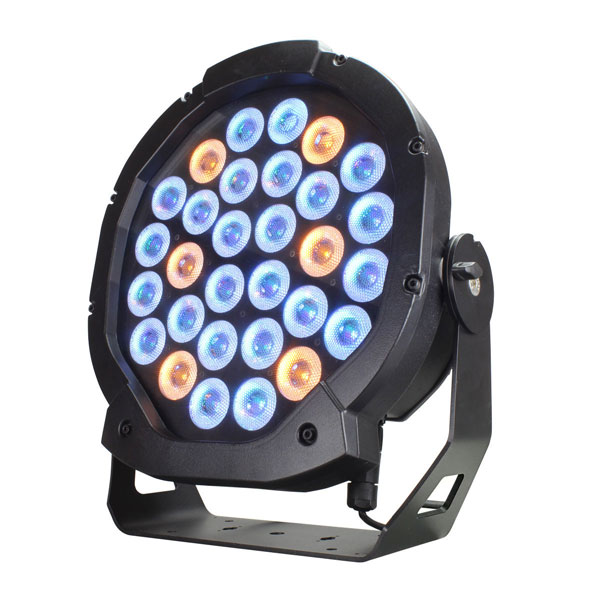

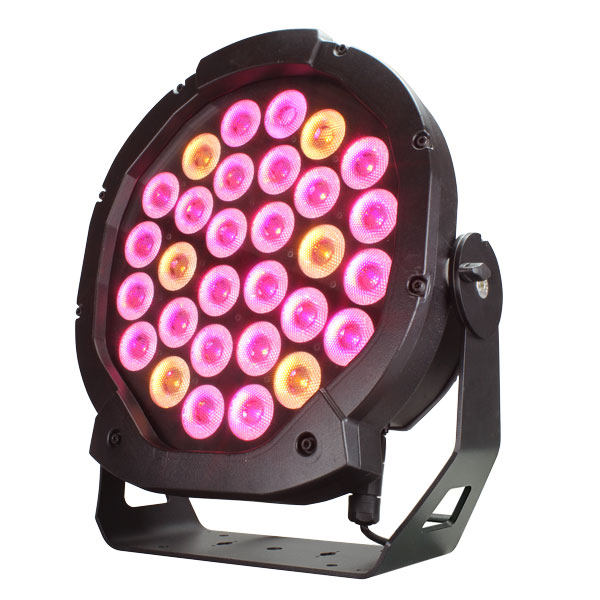

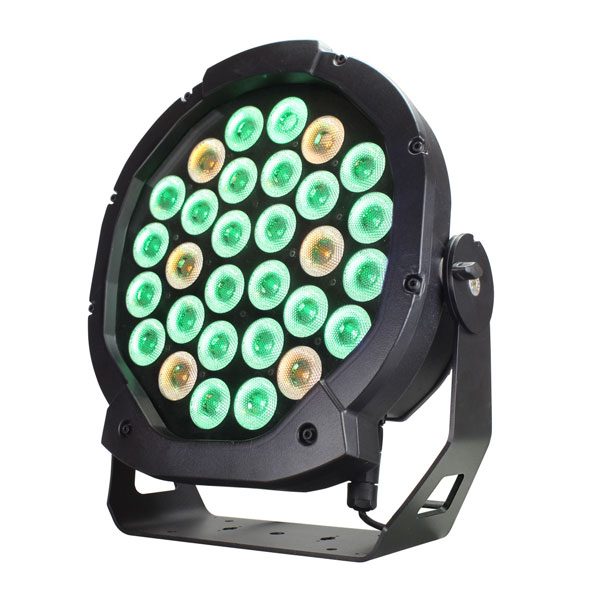

Hi Power wash LED light colorchanger. 24 RGBW LEDs + 6 Amber LEDs , with touch control panel on the rear. IP 67 protection rating.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Amber lumen (lm)
  • Setup
  • Functions
  • Daisy chain Power+DMX (max n. fixture)
  • Connectors and cables MAINS
  • Connectors and cables DMX
  • Input range
  • Power max (W)
  • Current
  • Inrush current
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • IP protection rating
  • IK grade protection
  • Product Category
  • DMX channels
  • Tilt
  • Materials
  • Operating temperature
  • Colour finishing
  • Filtri (optional) mai
  • Tipo di controllo (mai)
  • Connettori e cavi (optional) (mai)
  • Lenti (mai)

This combination does not exist.

Contact Us


Specifications

Lighting source
LED type RGBWA
Number of LEDs 30
LED expected lifetime (hrs) 50000
Lumen max source (lm) 16000
Red lumen (lm) 2700
Green lumen (lm) 5150
Blu lumen (lm) 820
White lumen (lm) 5150
Amber lumen (lm) 1900
Optics
Filtri (optional) mai None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical
Lenti (mai) 6°, 10°, 20°, 40°, 60°
Connections
Connectors and cables MAINS Main Power: 3pin IP67 connector (male-female)
Connectors and cables DMX DMX signal: 4pin IP67 connector (male-female)
Connettori e cavi (optional) (mai) Cable: type and length (optional)
Control
Tipo di controllo (mai) DMX - RDM, DMX - RDM + Wireless (on request)
Functions and Setup
Functions LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function

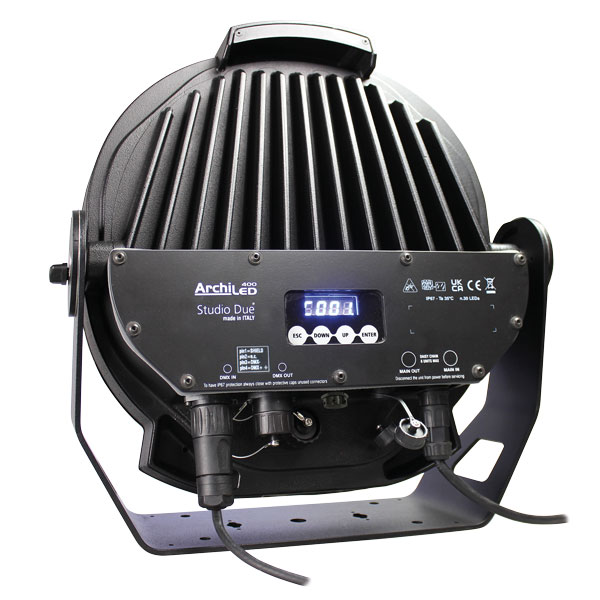

Setup RDM/DRS + touch control panel
DMX channels 10ch - 7ch - 6ch - 5ch
Power supply
Daisy chain Power+DMX (max n. fixture) 6
Input range 200 - 240 VAC; 47/63 Hz
Power max (W) 210
Current 0,9A@230VAC
Inrush current 65A@230VAC
Physical
Materials Ultra clear 5mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
Sizes l x p x h (mm) 400 x 125 x 420
Weight (Kgs) 11,5
IP protection rating 67
IK grade protection 07
Product Category Spot
Tilt 135°
Operating temperature -30°C +45°C
