PL MAX PLUG-IN (it.191000)

PL MAX PLUG-IN (it.191000)

https://www.studiodue.com/web/image/product.template/273/image_1920?unique=5a91a4b

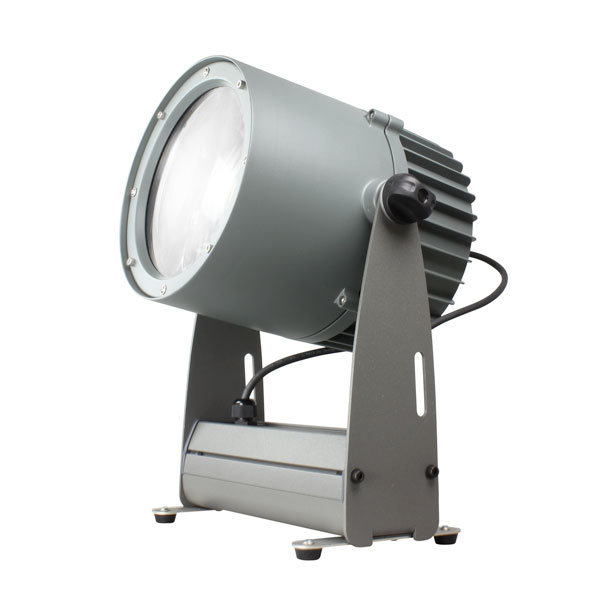

Compact monochromatic LED spot with ultra-narrow 2,5° optic designed for outdoor installations. Plug-In version. IP65 protection rating. Standard W color temperature 6500K.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Lenses
  • Control type
  • Functions
  • Input range
  • Power max (W)
  • Inrush current
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • Accessories - Barn door

This combination does not exist.

LED type WHITE 6500K
Number of LEDs 1 NICHIA NVCWL024Z
LED expected lifetime (hrs) 30000
Lumen max source (lm) 4300
Lenses 2 x 170mm FRESNEL lenses (2,5°)
Control type Plug-in
Functions N/A
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 80
Inrush current 60A@230V
Mounting systems Surface, Truss (optional)
Marine Grade treatment None, Yes
IP protection rating 65
Sizes l x p x h (mm) 290 x 238 x 370
Weight (Kgs) 5
Colour finishing Grey RAL 9006 (standard)
Product Category Ultra Narrow Beam
Accessories - Barn door None, Yes
