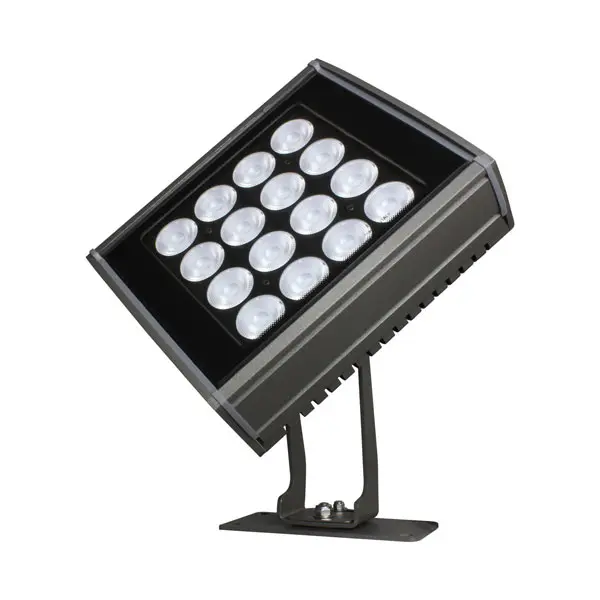

PIVOT M PLUG-IN (art.260600)
This architectural lighting fixture is characterised by clean, angular lines and a compact design, created to blend seamlessly into contemporary architecture whilst maintaining a strong visual identity. It stands out for its unique adjustability, thanks to a bracket designed to ensure smooth and precise adjustment of the orientation.
Specifications
| Lighting source | |
|---|---|
| LED type | WHITE 2700K, WHITE 3000K, WHITE 4000K, WHITE 6500K, RED, GREEN, BLUE, AMBER |
| Number of LEDs | 16 |
| Lumen source (lm) | 7000 |
| Lumen delivered (lm) | 6600 |
| Optics | |
|---|---|
| Lenses | 4° , 8°, 10°x30°, 10°x50°, 15°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables MAINS | 1.5mt 3x0.75mm cable |
| Control | |
|---|---|
| Control type | Plug-in |
| Power supply | |
|---|---|
| Input range | 180 - 240 VAC; 47/63 Hz |
| Power max (W) | 45 |
| Current | 0,19A@230VAC |
| Physical | |
|---|---|
| Marine Grade treatment | Standard finish, Marine grade treatment |
| Colour finishing | Metal grey 7011 (standard), Black RAL 9005 (optional) 1, Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Operating temperature | -30°C +45°C |
| IP protection rating | 67 |
