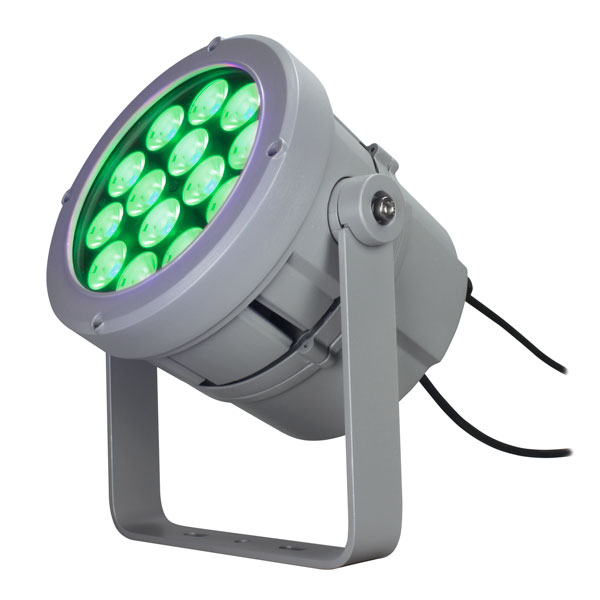

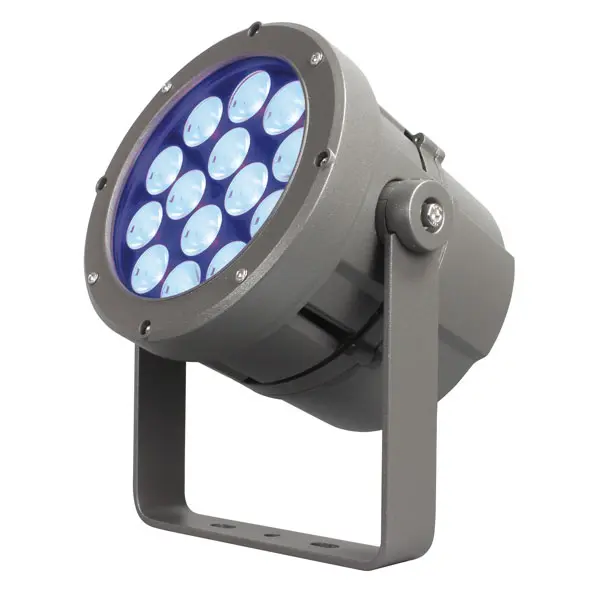

PARLED300 PRO DRS RGBW IP67 (it. 202010)
Hi Power wash LED Par Colorchanger. IP 67 protection rating. 14 RGBnW LEDs. Fixture with DRS-RDM control.
Specifications
| Lighting source | |
|---|---|
| LED type | RGB-NW (white 4000K) |
| Number of LEDs | 14 (5050-20W) RGB-NW (White 4000K) |
| LED expected lifetime (hrs) | 50000 |
| Lumen source (lm) | 9500 |
| Red lumen (lm) | 1950 |
| Green lumen (lm) | 3500 |
| Blu lumen (lm) | 600 |
| White lumen (lm) | 3500 |
| Optics | |
|---|---|
| Lenses | 8°, 10°x30°, 10°x50°, 15°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: 3x1mm cable H05 1,5mt, DMX signal: 4pin IP67 connector (male-female) |
| Connectors and cables (optional) | Cable: type and length (optional) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | Dedicated DMX channel for white balance from 2900K to 13000K, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Continuous dimming 0-100%, Smooth dimming function, Halogen simulation, CYM simulation, Flicker-free function |
| DMX channels | 9ch - 6ch - 5ch - 4ch |
| Setup | RDM/DRS |
| Power supply | |
|---|---|
| Input range | 100 - 277 VAC; 47/63 Hz |
| Power Factor | PF>0,95@230VAC |
| Power max (W) | 105 |
| Inrush current | 50A@230V |
| Current | 0,5A@230VAC |
| Physical | |
|---|---|
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | Standard finish, Marine grade treatment |
| Colour finishing | Grey RAL 7011 (standard), Black RAL 9005 (optional), Grey RAL 9006 (optional), White RAL 9010 (optional), Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, All aluminium alloy, Polyester powder coated |
| Operating temperature | -30°C +45°C |
| Sizes l x p x h (mm) | 247x190x300mm |
| Tilt | 360° |
| Weight (Kgs) | 4,6 |
| Product Category | Spot |
| IP protection rating | 67 |
| IK grade protection | 07 |
| Others | |
|---|---|
| PARLED300-CL (art.900301) | No, Yes |
| PARLED300-BD (art.900113) | No, Yes |
| PARLED300-AG (art.900010) | No, Yes |
| PARLED300-SN (art.900200) | No, Yes |
| CLAMP/C (art.900516) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
