Product Description

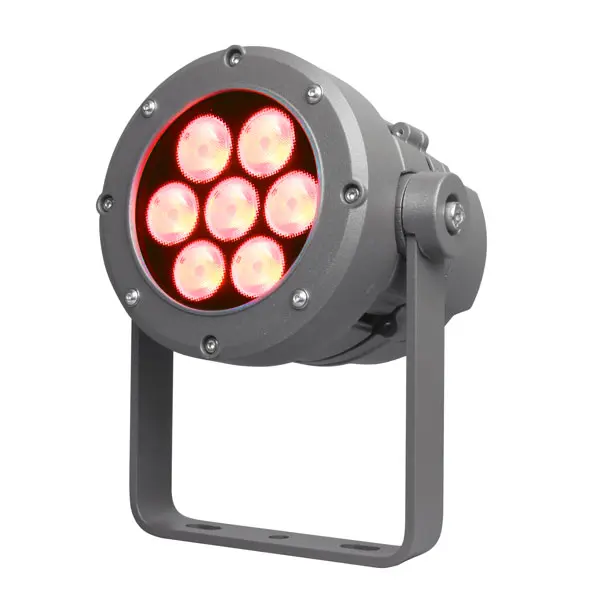

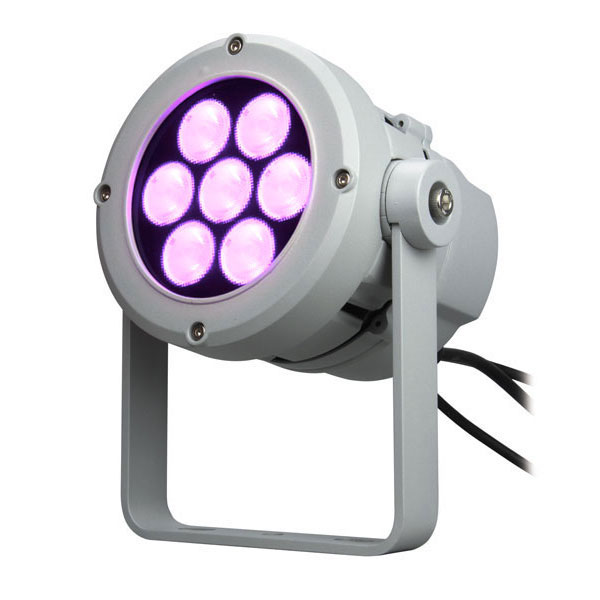

Wash LED Par light with control panel (4 buttons). 7 RGBW full color LEDs. IP 20 protection rating.


Downloads

UM_Parled100-all.pdf

ART.150610 - PARLED 100 RGBW.zip
Technical specification
LED type
RGBW5050MULTICHIP
Number of LEDs
7
LED expected lifetime (hrs)
50000
Lumen MAX
3300
Red lumen (lm)
680
Green lumen (lm)
1300
Blu lumen (lm)
220
White lumen (lm)
1300
Lenses
15°
15°x30°
25°
40°
60°
Filters (optional)
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 1° x 60° (1° = native lens) vertical
Connectors and cables
Main Power: 3x1,5mm cable
DMX signal: XLR5pin connector (male-female)
Connettori e cavi (optional)
Cable: type and length (optional)
Control type
DMX - RDM
DMX - RDM + Wireless (on request)
Functions
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
Setup
RDM/DRS + push button panel
DMX channels
9ch - 6ch - 5ch - 4ch
Input range
100 - 240 VAC; 47/63 Hz
Power (W)
43
Current
0,2A@230VAC
Inrush current
35A@230V
Materials
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
Mounting systems
Surface
Truss (optional)
Colour finishing
Grey RAL 9006 (standard)
RAL 9006
Any RAL (optional)
Marine Grade treatment
None
Yes
Tilt
360°
IP protection rating
20
Operating temperature
-30°C +45°C
Sizes l x p x h (mm)
187x140x230
Weight (Kgs)
2
Accessories - Barn door
None
Yes
