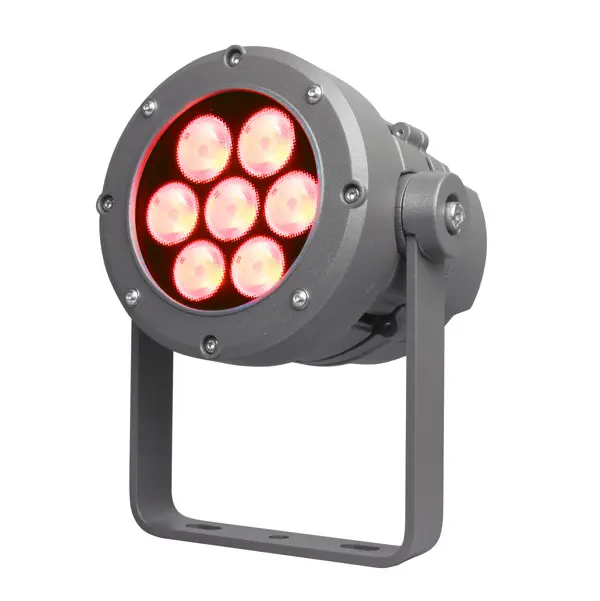

PARLED 100 DRS RGBW IP67 (it.150710)

• LED type
  • RGBW5050MULTICHIP
• Number of LEDs
  • 7
• LED expected lifetime (hrs)
  • 50000
• Lumen max source (lm)
  • 3600
• Red lumen (lm)
  • 680
• Green lumen (lm)
  • 1300
• Blu lumen (lm)
  • 220
• White lumen (lm)
  • 1300
• Lenses
  • 8°
  • 15°
  • 15°x30°
  • 25°
  • 40°
  • 60°
• Filters (optional)
  • None
  • Elliptical projection filter 60° x n° (n° = native lens) horizontal
  • Elliptical projection filter n° x 60° (n° = native lens) vertical
• Connectors and cables
  • Main Power: 3x1mm cable H05 1,5mt
  • DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
• Connettori e cavi (optional) Cable: type and length (optional)
• Control type
  • DMX - RDM
  • DMX - RDM + Wireless (on request)
• Functions
  • Dedicated DMX channel for white balance from 2900K to 13000K
  • DMX or Auto Mode with Master-Slave function
  • Intelligent temperature control
  • Continuous dimming 0-100%
  • Smooth dimming function
  • Halogen simulation
  • CYM simulation
  • Flicker-free function
• Setup
  • RDM/DRS
• DMX channels
  • 9ch - 6ch - 5ch - 4ch
• Input range
  • 100 - 240 VAC; 47/63 Hz
• Power max (W)
  • 43
• Current
  • 0,2A@230VAC
• Inrush current
  • 35A@230V
• Tilt
  • 360°
• IP protection rating
  • 67
• IK grade protection
  • 07
• Operating temperature
  • -30°C +45°C
• Sizes l x p x h (mm)
  • 187 x 140 x 230
• Weight (Kgs)
  • 2
• Materials
  • Ultra clear 4mm tempered glass
  • PMMA lenses
  • All aluminium alloy
  • Polyester powder coated
• Mounting systems
  • Surface
  • Truss (optional)
• Colour finishing
• Marine Grade treatment
  • None
  • Yes
• Product Category
  • Spot
• PARLED100-BD (art.900112)
  • No
  • Yes
• PARLED100-SN (art.900202)
  • No
  • Yes
• PARLED100-CL (art.900302)
  • No
  • Yes
• CLAMP/C (art.900516)
  • No
  • Yes
• SAFETY WIRE/C (art.900523)
  • No
  • Yes
