Product Description

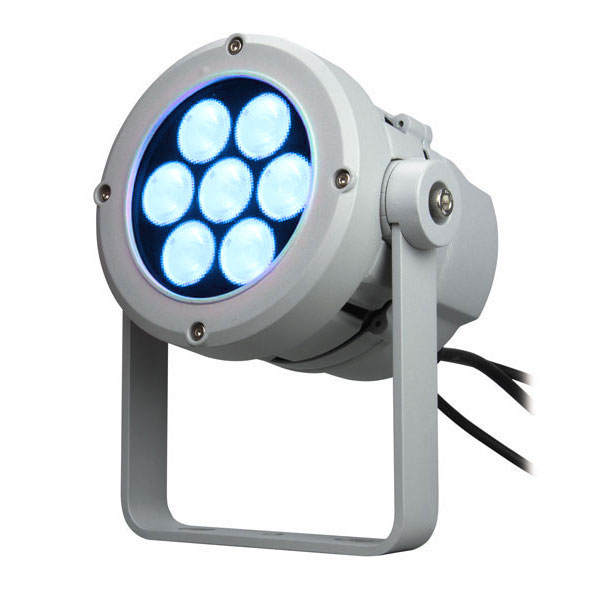

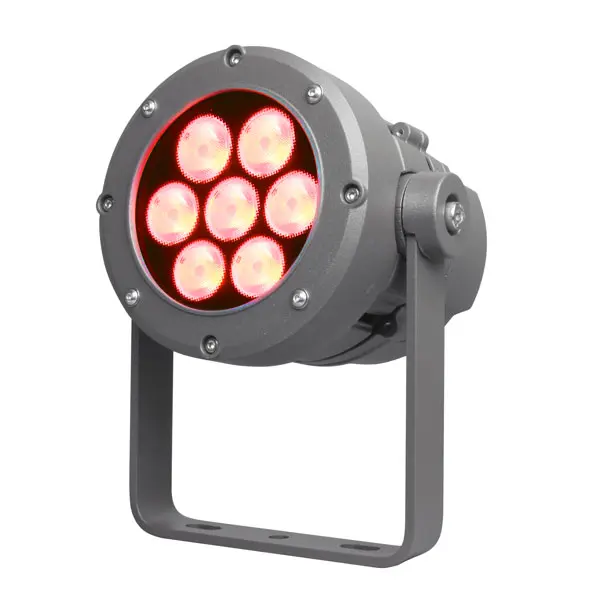

Wash LED Par light. 7 RGBW full color LEDs. Remote configuration by DRS Setup device. IP 67 protection rating.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
7
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
3600
|
Red lumen (lm)
|
680
|
Green lumen (lm)
|
1300
|
Blu lumen (lm)
|
220
|
White lumen (lm)
|
1300
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x n° (n° = native lens) horizontal
Elliptical projection filter n° x 60° (n° = native lens) vertical
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H05 1,5mt
DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
|
Connettori e cavi (optional)
|
Cable: type and length (optional)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
9ch - 6ch - 5ch - 4ch
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power max (W)
|
43
|
Current
|
0,2A@230VAC
|
Inrush current
|
35A@230V
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Any RAL (optional)
Specify RAL
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
360°
|
IP protection rating
|
67
|
IK grade protection
|
07
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
187 x 140 x 230
|
Weight (Kgs)
|
2
|
| Uncategorized | |
PARLED100-BD (art.900112)
|
No
Yes
|
PARLED100-SN (art.900202)
|
No
Yes
|
PARLED100-CL (art.900302)
|
No
Yes
|
CLAMP/C (art.900516)
|
No
Yes
|
SAFETY WIRE/C (art.900523)
|
No
Yes
|
