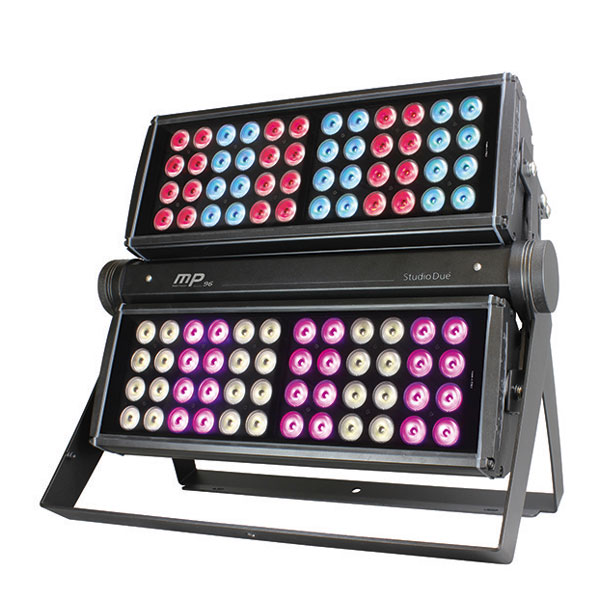

MPCOLOR 96 RGBW (it.194010)
Wash/flood light fixture with 12 independent segment control 8 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. IP 65 protection rating. RDM/DRS.
Documents
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW5050MULTICHIP |
| Number of LEDs | 96 |
| LED expected lifetime (hrs) | 50000 |
| Lumen max source (lm) | 71808 |
| Red lumen (lm) | 15360 |
| Green lumen (lm) | 26880 |
| Blu lumen (lm) | 4800 |
| White lumen (lm) | 29568 |
| Colour temperature range (K) | 2000 - 10000 |
| Optics | |
|---|---|
| Lenses (upper head) | 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Lenses (lower head) | 8°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (upper head) | None, f 60°, f 100°, f 8°x 60°, frost 65° |
| Filters (lower head) | None, f 60°, f 100°, f 8°x 60°, frost 65° |
| Connections | |
|---|---|
| Connectors and cables | Main Power: PowerCon IP65 connector (male-female), DMX signal: XLR5pin IP65 connector (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, Dedicated DMX channel for macro, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, CYM simulation, Flicker-free function |
| DMX channels | 54ch - 48ch - 9ch - 4ch 0 |
| Setup | RDM/DRS + touch control panel |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 900 |
| Current | 4A@230VAC |
| Power Factor | PF>0,95@230VAC |
| Inrush current | 60A@230V |
| Physical | |
|---|---|
| IP protection rating | 65, 67 optional |
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional) |
| Materials | Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated |
| Sizes l x p x h (mm) | 672 x 204 x 569mm |
| Weight (Kgs) | 30 |
| Product Category | Wall Washer |
| Optional/Accessories | |
|---|---|
| Accessories - Flight case | None, Yes |
| Accessories - Barn door | None, Yes |
| Accessories - Anti glare | None, Yes |
| Accessories - Handle | None, Yes |
