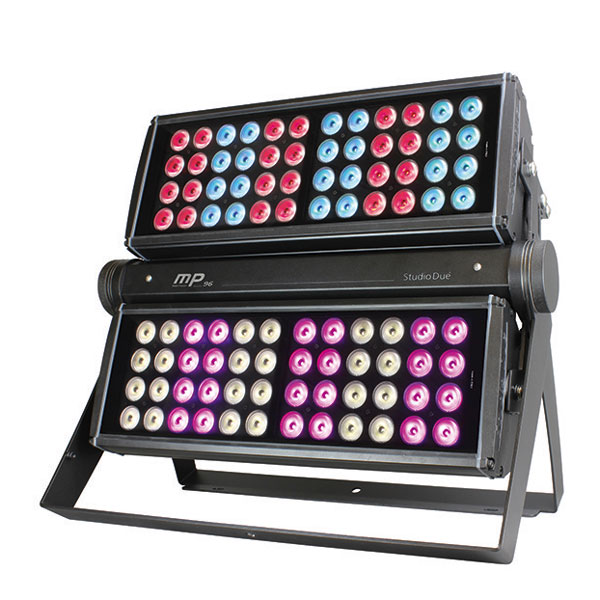

MPCOLOR 96 RGBW (it.194010)

MPCOLOR 96 RGBW (it.194010)

https://www.studiodue.com/web/image/product.template/31/image_1920?unique=5a91a4b

Wash/flood light fixture with 12 independent segment control 8 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. IP 65 protection rating. RDM/DRS.

Not Available For Sale

  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max source (lm)
  • Red lumen (lm)
  • Green lumen (lm)
  • Blu lumen (lm)
  • White lumen (lm)
  • Colour temperature range (K)
  • Lenses (upper head)
  • Lenses (lower head)
  • Filters (upper head)
  • Filters (lower head)
  • Connectors and cables
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • Current
  • Power Factor
  • Inrush current
  • IP protection rating
  • Sizes l x p x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Colour finishing
  • Marine Grade treatment
  • Product Category
  • Accessories - Flight case
  • Accessories - Anti glare
  • Accessories - Barn door
  • Accessories - Handle

This combination does not exist.

LED type RGBW5050MULTICHIP
Number of LEDs 96
LED expected lifetime (hrs) 50000
Lumen max source (lm) 71808
Red lumen (lm) 15360
Green lumen (lm) 26880
Blu lumen (lm) 4800
White lumen (lm) 29568
Colour temperature range (K) 2000 - 10000
Lenses (upper head) 8°, 15°, 15°x30°, 25°, 40°, 60°
Lenses (lower head) 8°, 15°, 15°x30°, 25°, 40°, 60°
Filters (upper head) None, f 60°, f 100°, f 8°x 60°, frost 65°
Filters (lower head) None, f 60°, f 100°, f 8°x 60°, frost 65°
Connectors and cables Main Power: PowerCon IP65 connector (male-female), DMX signal: XLR5pin IP65 connector (male-female)
Control type DMX - RDM, DMX - RDM + Wireless (on request)
Functions LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, Dedicated DMX channel for macro, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, CYM simulation, Flicker-free function
Setup RDM/DRS + touch control panel
DMX channels 54ch - 48ch - 9ch - 4ch 0
Input range 100 - 240 VAC; 47/63 Hz
Power max (W) 900
Current 4A@230VAC
Power Factor PF>0,95@230VAC
Inrush current 60A@230V
IP protection rating 65, 67 optional
Materials Ultra clear 4mm tempered glass, PMMA lenses, Aluminium alloy housing , Polyester powder coated
Mounting systems Surface, Truss (optional)
Colour finishing Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1, Any RAL (optional)
Marine Grade treatment None, Yes
Sizes l x p x h (mm) 672 x 204 x 569mm
Weight (Kgs) 30
Product Category Wall Washer
Accessories - Flight case None, Yes
Accessories - Anti glare None, Yes
Accessories - Barn door None, Yes
Accessories - Handle None, Yes
Contact Us


Wash/flood light fixture with 12 independent segment control 8 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. IP 65 protection rating. RDM/DRS.
