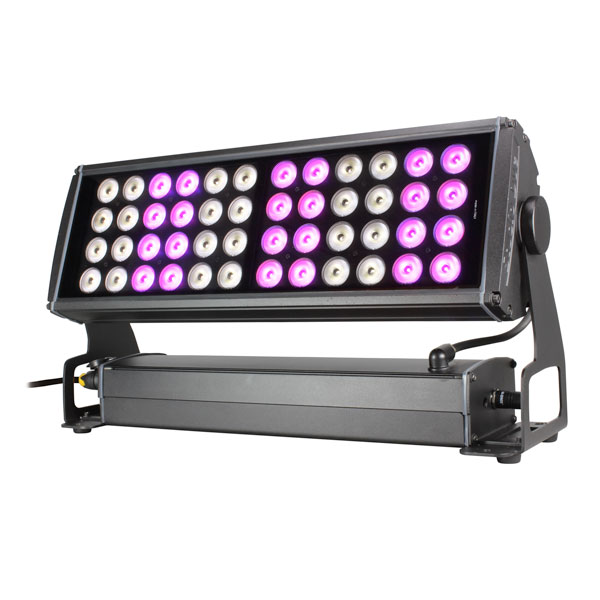

MPCOLOR 48 RGBW (it. 194110)
Wash/flood light fixture with 6 independent segment control 8 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. IP 65 protection rating. RDM/DRS.
Wash/flood light fixture with 6 independent segment control 8 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. IP 65 protection rating. RDM/DRS.
Lo snippet dinamico verrà mostrato qui...
Questo messaggio viene visualizzato perché non hai fornito un filtro e un modello da utilizzare.
Specifications
| Lighting source | |
|---|---|
| LED type | RGBW5050MULTICHIP |
| Lumen max source (lm) | 35904 |
| Red lumen (lm) | 7680 |
| LED expected lifetime (hrs) | 50000 |
| Green lumen (lm) | 13440 |
| Number of LEDs | 48 |
| Blu lumen (lm) | 2400 |
| White lumen (lm) | 14784 |
| Colour temperature range (K) | 2000 - 10000 |
| Optics | |
|---|---|
| Lenses | 8°, 10°x50°, 15°, 15°x30°, 25°, 40°, 60° |
| Filters (optional) | None, Elliptical projection filter 60° x n° (n° = native lens) horizontal, Elliptical projection filter n° x 60° (n° = native lens) vertical |
| Connections | |
|---|---|
| Connectors and cables | Main Power: PowerCon IP65 connector (male-female), DMX signal: XLR5pin IP65 connector (male-female) |
| Control | |
|---|---|
| Control type | DMX - RDM, DMX - RDM + Wireless (on request) |
| Functions and Setup | |
|---|---|
| Functions | LED display with flip function, Dedicated DMX channel for white balance from 2000K to 10000K, Dedicated DMX channel for macro, DMX or Auto Mode with Master-Slave function, Intelligent temperature control, Smooth dimming function, Ultrafast strobe effect, Halogen simulation, CYM simulation, Flicker-free function |
| Setup | RDM/DRS + touch control panel |
| DMX channels | 30ch - 24ch - 9ch - 4ch |
| Power supply | |
|---|---|
| Input range | 100 - 240 VAC; 47/63 Hz |
| Power max (W) | 450 |
| Current | 2A@230VAC |
| Power Factor | PF>0,95@230VAC |
| Inrush current | 60A@230V |
| Physical | |
|---|---|
| IP protection rating | 65, 67 optional |
| Mounting systems | Surface, Truss (optional) |
| Marine Grade treatment | None, Yes |
| Colour finishing | Black RAL 9005 (standard) , Grey RAL 9006 (optional), White RAL 9010 (optional) 1 |
| IK grade protection | 07 |
| Sizes l x p x h (mm) | 622 x 206 x 330 mm |
| Weight (Kgs) | 16 |
| Product Category | Wall Washer |
| Others | |
|---|---|
| 550LED-HOLO20 (art.900404) | No, Yes |
| 550LED-FROST (art.900403) | No, Yes |
| 550LED-HOLO30 (art.900405) | No, Yes |
| HD-MP48 (art.900502) | No, Yes |
| CP-MP48 (art.900506) | No, Yes |
| 550-BD (art.900105) | No, Yes |
| 550-AG (art.900005) | No, Yes |
| CLAMP/C (art.900516) | No, Yes |
| FFB (art.900517) | No, Yes |
| SAFETY WIRE/C (art.900523) | No, Yes |
